Overview

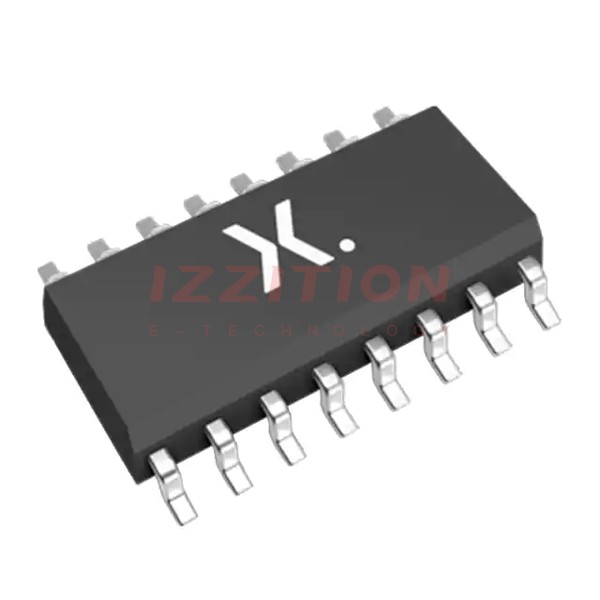

The 74HC151D-Q100,118 is an 8-input multiplexer integrated circuit (IC) manufactured by Nexperia USA Inc. This component is part of the 74HC series, known for its high-speed CMOS logic. The 74HC151D is designed to select one of eight binary inputs (I0 to I7) based on three select inputs (S0 to S2) and an enable input (E), making it a versatile component for various digital circuit applications.
The device is packaged in a 16-pin SOIC (Small Outline Integrated Circuit) package, which is suitable for surface mount technology. It is compliant with automotive and industrial standards, including AEC-Q100, and is RoHS compliant, ensuring it meets environmental regulations.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Type Number | 74HC151D | - |
| Package | 16-SOIC (SOT109-1) | - |
| Number of Pins | 16 | - |
| Operating Temperature | -40°C to +125°C | °C |
| Supply Voltage (VCC) | 2.0 to 6.0 | V |
| Logic Switching Levels | CMOS | - |
| Output Drive Capability | ± 5.2 | mA |
| Propagation Delay (tpd) | 17 | ns |
| ESD Protection (HBM) | > 2000 V | V |
| ESD Protection (CDM) | > 1000 V | V |
Key Features
- High-Speed CMOS Logic: The 74HC151D operates with CMOS logic levels, ensuring high-speed performance.
- 8-Input Multiplexing: Selects one of eight binary inputs based on three select inputs and an enable input.
- Low Power Dissipation: Designed for low power consumption, making it suitable for energy-efficient designs.
- Wide Operating Temperature Range: Operates from -40°C to +125°C, making it versatile for various environmental conditions.
- ESD Protection: Provides high ESD protection (HBM > 2000 V, CDM > 1000 V) to safeguard against electrostatic discharge.
- Compliance with Standards: Complies with JEDEC standards (JESD8C and JESD7A) and is RoHS compliant.
Applications
The 74HC151D-Q100,118 is widely used in various industries due to its versatility and reliability. Some key applications include:
- Automotive Systems: Used in automotive electronics for signal routing and data selection.
- Industrial Control Systems: Employed in industrial automation for multiplexing and demultiplexing signals.
- Consumer Electronics: Found in consumer devices such as audio and video equipment for signal switching.
- Computing and Networking: Used in computing and networking hardware for data routing and selection.
Q & A
- What is the primary function of the 74HC151D-Q100,118?
The primary function is to act as an 8-input multiplexer, selecting one of eight binary inputs based on three select inputs and an enable input.
- What is the operating temperature range of the 74HC151D-Q100,118?
The operating temperature range is from -40°C to +125°C.
- What is the supply voltage range for the 74HC151D-Q100,118?
The supply voltage range is from 2.0 V to 6.0 V.
- What type of logic switching levels does the 74HC151D-Q100,118 use?
The device uses CMOS logic switching levels.
- What is the propagation delay of the 74HC151D-Q100,118?
The propagation delay is approximately 17 ns.
- Does the 74HC151D-Q100,118 have ESD protection?
Yes, it provides high ESD protection (HBM > 2000 V, CDM > 1000 V).
- Is the 74HC151D-Q100,118 RoHS compliant?
Yes, it is RoHS compliant.
- What is the package type of the 74HC151D-Q100,118?
The device is packaged in a 16-pin SOIC (SOT109-1).
- What are some common applications of the 74HC151D-Q100,118?
Common applications include automotive systems, industrial control systems, consumer electronics, and computing and networking hardware.
- Does the 74HC151D-Q100,118 comply with any specific standards?
Yes, it complies with JEDEC standards (JESD8C and JESD7A) and is AEC-Q100 qualified.
- What is the moisture sensitivity level (MSL) of the 74HC151D-Q100,118?
The MSL is 1 (Unlimited).
