Overview

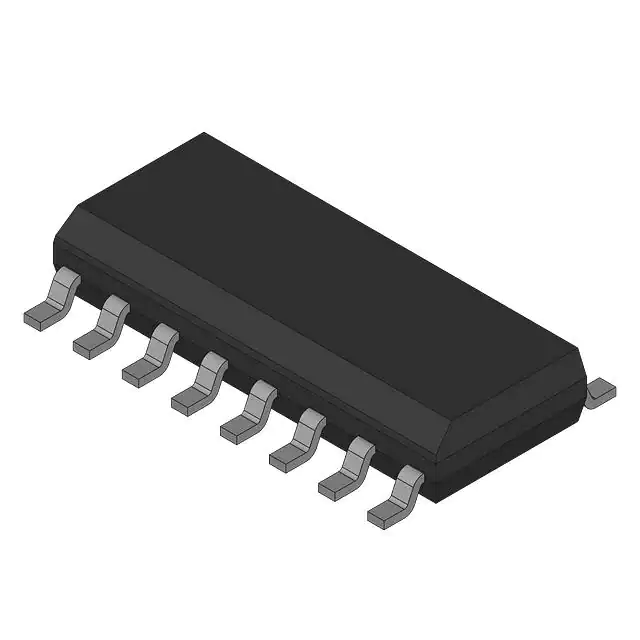

The 74HC157D-Q100,118 is a quad 2-input multiplexer produced by NXP USA Inc., now part of Nexperia. This device is designed to select one of two data sources based on the state of the select input (S). It features an enable input (E) that, when set high, forces all outputs to a low state. The 74HC157D-Q100,118 is fabricated using silicon gate C2MOS technology, which provides high-speed operation similar to LSTTL while maintaining the low power dissipation characteristic of CMOS devices.
This component is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), making it suitable for use in automotive applications. It operates over a wide temperature range from -40°C to +125°C and supports a supply voltage range of 2.0 V to 6.0 V.
Key Specifications
| Type Number | VCC (V) | Logic Switching Levels | Output Drive Capability (mA) | tpd (ns) | Power Dissipation Considerations | Tamb (°C) | Package Name |
|---|---|---|---|---|---|---|---|
| 74HC157D-Q100 | 2.0 - 6.0 | CMOS | ± 5.2 | 11 | Low | -40 to 125 | SO16 |
Key Features
- Wide Operating Temperature Range: From -40°C to +125°C.
- High Speed Operation: Similar to LSTTL while maintaining CMOS low power dissipation.
- ESD Protection: HBM (ANSI/ESDA/JEDEC JS-001 class 2) exceeds 2000 V, CDM (ANSI/ESDA/JEDEC JS-002 class C3) exceeds 1000 V.
- Latch-up Performance: Exceeds 100 mA per JESD 78 Class II Level B.
- Multiple Package Options: Including SO16 and TSSOP packages.
- Non-inverting Data Path: Ensures direct transfer of input signals to output without inversion.
- High Noise Immunity: Ensures reliable operation in noisy environments.
Applications
The 74HC157D-Q100,118 is suitable for a variety of applications, particularly in the automotive sector due to its AEC-Q100 qualification. It can be used in:
- Automotive Systems: For signal routing and data selection in automotive electronics.
- Industrial Control Systems: Where high reliability and wide operating temperature ranges are required.
- Consumer Electronics: In devices that need to switch between different data sources efficiently.
- Telecommunication Equipment: For signal multiplexing and routing.
Q & A
- What is the primary function of the 74HC157D-Q100,118?
The primary function is to act as a quad 2-input multiplexer, selecting one of two data sources based on the select input (S) and enabling or disabling the outputs based on the enable input (E).
- What is the operating temperature range of the 74HC157D-Q100,118?
The operating temperature range is from -40°C to +125°C).
- What is the supply voltage range for this component?
The supply voltage range is from 2.0 V to 6.0 V).
- What type of logic switching levels does the 74HC157D-Q100,118 support?
The 74HC157D-Q100,118 supports CMOS logic switching levels).
- What is the output drive capability of the 74HC157D-Q100,118?
The output drive capability is ± 5.2 mA).
- Does the 74HC157D-Q100,118 have ESD protection?
Yes, it has ESD protection with HBM exceeding 2000 V and CDM exceeding 1000 V).
- What are the package options available for the 74HC157D-Q100,118?
Available packages include SO16 and TSSOP).
- Is the 74HC157D-Q100,118 suitable for automotive applications?
Yes, it is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1)).
- What is the propagation delay time for the 74HC157D-Q100,118?
The propagation delay time varies by supply voltage but is typically around 11 ns for VCC = 2.0 V to 6.0 V).
- Does the 74HC157D-Q100,118 have latch-up protection?
Yes, it has latch-up performance that exceeds 100 mA per JESD 78 Class II Level B).
