Overview
The 74AUP1T97GW,125 is a low-power configurable multiple function gate produced by Nexperia USA Inc. This device is designed to offer high flexibility and efficiency in various digital logic applications. It features Schmitt-trigger inputs, which provide high noise immunity and tolerance to slower input rise and fall times. The 74AUP1T97GW can be configured to perform several logic functions, including MUX, AND, OR, NAND, NOR, inverter, and buffer, using a 3-bit input configuration.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Nr of bits | Power dissipation considerations | Tamb (°C) | Package name |
|---|---|---|---|---|---|---|---|---|---|

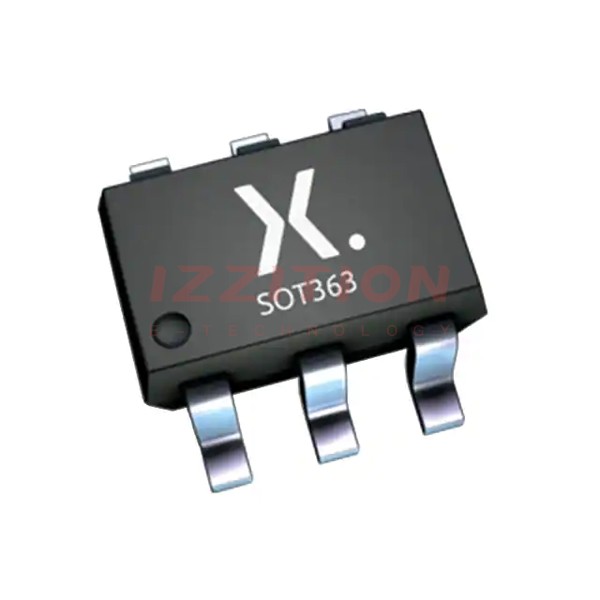

| 74AUP1T97GW | 2.3 - 3.6 | CMOS | ± 4 | 3.9 | 70 | 1 | Ultra low | -40 ~ 125 | TSSOP6 (SOT363-2) |
Key Features
- Configurable Logic Functions: Can be configured as MUX, AND, OR, NAND, NOR, inverter, and buffer using a 3-bit input.
- Schmitt-trigger Inputs: Provides high noise immunity and tolerance to slower input rise and fall times.
- Wide Supply Voltage Range: Operates from 2.3 V to 3.6 V.
- Low Power Consumption: Ultra-low static and dynamic power consumption.
- IOFF Circuitry: Enables partial power-down mode operation, preventing backflow current when powered down.
- High ESD Protection: HBM: ANSI/ESDA/JEDEC JS-001 class 3A exceeds 5000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V.
- Temperature Range: Specified from -40 °C to +85 °C and -40 °C to +125 °C.
Applications
The 74AUP1T97GW is suitable for a wide range of applications, including:
- Automotive Systems: For use in automotive electronics where low power consumption and high reliability are crucial.
- Industrial Control Systems: Ideal for industrial automation and control systems requiring flexible logic functions.
- Consumer Electronics: Used in mobile and consumer devices where low power and high noise immunity are essential.
- Computing and Networking: Suitable for computing and networking applications requiring low power and high performance.
Q & A
- What is the primary function of the 74AUP1T97GW?
The 74AUP1T97GW is a configurable multiple function gate that can be set up to perform various logic functions such as MUX, AND, OR, NAND, NOR, inverter, and buffer.
- What is the supply voltage range for the 74AUP1T97GW?
The device operates from 2.3 V to 3.6 V.
- What type of inputs does the 74AUP1T97GW have?
The device features Schmitt-trigger inputs, which provide high noise immunity.
- What is the purpose of the IOFF circuitry in the 74AUP1T97GW?
The IOFF circuitry enables partial power-down mode operation, preventing potentially damaging backflow current when the device is powered down.
- What are the temperature specifications for the 74AUP1T97GW?
The device is specified to operate from -40 °C to +85 °C and -40 °C to +125 °C.
- What is the output drive capability of the 74AUP1T97GW?
The output drive capability is ± 4 mA.
- What is the maximum propagation delay of the 74AUP1T97GW?
The maximum propagation delay is 3.9 ns.
- What type of ESD protection does the 74AUP1T97GW offer?
The device offers HBM: ANSI/ESDA/JEDEC JS-001 class 3A exceeds 5000 V and CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V ESD protection.
- What package options are available for the 74AUP1T97GW?
The device is available in TSSOP6 (SOT363-2) and other package options.
- Is the 74AUP1T97GW RoHS compliant?
Yes, the device is RoHS compliant.
