Overview
The 74AUP1T97GM,132 is a versatile and low-power integrated circuit produced by Nexperia USA Inc. This device is part of the AUP (Advanced Ultra Low Power) logic family and is designed to provide single supply voltage level translation and configurable logic functions. It is particularly suited for mixed voltage signal applications, especially in battery-powered portable devices where low power consumption is crucial.
Key Specifications
| Parameter | Conditions | Min | Max | Unit |
|---|---|---|---|---|
| VCC (Supply Voltage) | 2.3 | 3.6 | V | |
| VIN (Input Voltage) | 0 | 3.6 | V | |
| VOUT (Output Voltage) | VCC = 0 V HIGH or LOW State | 0 | 3.6 | V |
| IOH / IOL (Output Current) | VCC = 3.0 V to 3.6 V | ±4.0 | mA | |
| TA (Operating Free-Air Temperature) | -40 | +85 | °C | |
| Propagation Delay Time | CL = 5 pF, RL = 1 MΩ | 1.1 | 6.8 | ns |

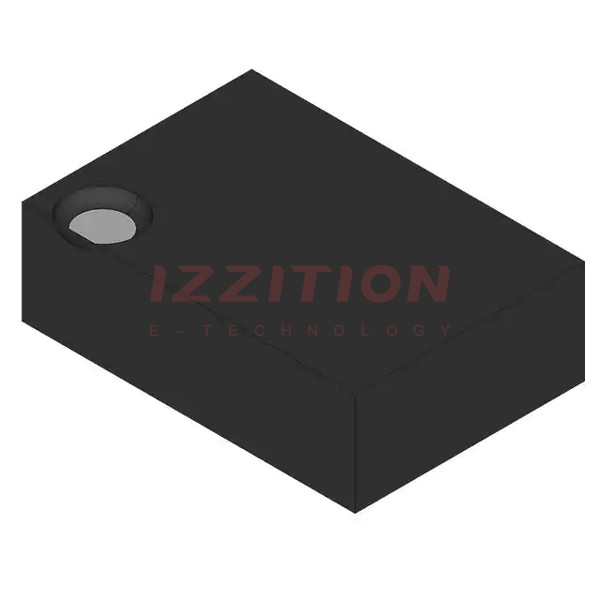

| Package / Case | XSON-6 |
Key Features
- Configurable Logic Functions: The 74AUP1T97GM,132 can be configured to perform multiple logic functions such as MUX, AND, NAND, OR, NOR, inverter, and buffer.
- Low Power Consumption: Designed for very low static and dynamic power consumption across the entire voltage range, making it ideal for battery-powered devices.
- Voltage Level Translation: Supports single supply voltage level translation, allowing it to operate with inputs switching levels that accept 1.8 V low voltage CMOS signals while operating from a single 2.5 V or 3.3 V supply voltage.
- Hysteresis on Inputs: All inputs are implemented with hysteresis to allow for slower transition input signals and better switching noise immunity.
- Compact Package: Available in a small XSON-6 package, which helps in saving PCB space.
Applications
- Battery-Powered Portable Devices: Ideal for devices where low power consumption is critical, such as smartphones, tablets, and other mobile electronics.
- Mixed Voltage Signal Applications: Suitable for systems that require voltage level translation between different voltage domains.
- Automotive Electronics: Can be used in automotive systems that require low power and reliable logic functions.
- Industrial Automation: Useful in industrial control systems and IoT devices that need efficient and reliable logic operations.
Q & A
- What is the primary function of the 74AUP1T97GM,132?
The primary function is to provide single supply voltage level translation and configurable logic functions.
- What are the supported logic functions of this device?
The device can be configured to perform MUX, AND, NAND, OR, NOR, inverter, and buffer functions.
- What is the operating voltage range of the 74AUP1T97GM,132?
The device operates within a supply voltage range of 2.3 V to 3.6 V.
- Why is hysteresis important in this device?
Hysteresis on inputs allows for slower transition input signals and better switching noise immunity.
- What is the typical propagation delay time of this device?
The typical propagation delay time is around 1.1 to 6.8 ns, depending on the conditions.
- In what package is the 74AUP1T97GM,132 available?
The device is available in a 6-XSON (SOT886) package.
- Is this device suitable for automotive applications?
Yes, it is suitable for automotive electronics due to its low power consumption and reliable operation.
- Can this device be used in industrial automation?
Yes, it is useful in industrial control systems and IoT devices that need efficient and reliable logic operations.
- What are the benefits of using this device in battery-powered devices?
The device offers very low static and dynamic power consumption, making it ideal for battery-powered portable devices.
- How does the device handle input voltage levels?
The device can handle input voltage levels that accept 1.8 V low voltage CMOS signals while operating from a single 2.5 V or 3.3 V supply voltage.
