Overview

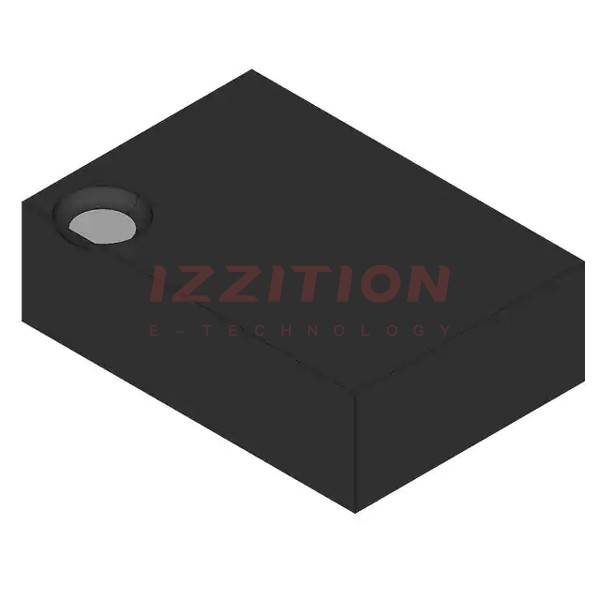

The 74AUP1T97GM,115 is a universal configurable 2-input logic gate produced by NXP Semiconductors, now part of Nexperia. This device is designed to provide single supply voltage level translation, making it ideal for mixed voltage signal applications, particularly in battery-powered portable devices. It offers low power consumption and is part of the TinyLogic® family, known for its compact and efficient design.
Key Specifications
| Parameter | Description |
|---|---|
| Package / Case | 6-XFDFN, SOT886 |
| Output Type | Single-Ended |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supply Voltage | 1.1 V to 3.6 V |
| Propagation Delay | Typically 3.7 ns to 7.0 ns depending on VCC and VIN |
| Input Hysteresis | Implemented to allow for slower transition input signals and better switching noise immunity |
Key Features
- Universal configurable 2-input logic gate with multiple logic functions such as MUX, AND, NAND, OR, NOR, inverter, and buffer.
- Single supply voltage level translation, supporting inputs switching levels from 1.8 V low voltage CMOS signals while operating from a single 2.5 V or 3.3 V supply voltage.
- Low power consumption with very low static and dynamic power across the entire voltage range.
- All inputs implemented with hysteresis for better noise immunity.
- Compact 6-XFDFN package (SOT886) suitable for space-constrained designs.
Applications
The 74AUP1T97GM,115 is particularly suited for mixed voltage signal applications, especially in battery-powered portable devices. It is also useful in various other applications such as:
- Mobile devices and smartphones.
- Portable consumer electronics.
- Automotive systems requiring low power and mixed voltage signal handling.
- Industrial control systems where low power and compact design are essential.
Q & A
- What is the primary function of the 74AUP1T97GM,115?
The primary function is to act as a universal configurable 2-input logic gate with single supply voltage level translation. - What are the supported logic functions of this device?
The device supports multiple logic functions including MUX, AND, NAND, OR, NOR, inverter, and buffer. - What is the operating temperature range of the 74AUP1T97GM,115?
The operating temperature range is -40°C to 125°C. - What is the package type of the 74AUP1T97GM,115?
The package type is 6-XFDFN (SOT886). - What is the supply voltage range for this device?
The supply voltage range is from 1.1 V to 3.6 V. - Why is input hysteresis important in this device?
Input hysteresis is important for allowing slower transition input signals and providing better switching noise immunity. - What are some typical applications of the 74AUP1T97GM,115?
Typical applications include mobile devices, portable consumer electronics, automotive systems, and industrial control systems. - How does the 74AUP1T97GM,115 handle mixed voltage signals?
The device can handle inputs switching levels from 1.8 V low voltage CMOS signals while operating from a single 2.5 V or 3.3 V supply voltage. - What are the benefits of using the 74AUP1T97GM,115 in battery-powered devices?
The benefits include low power consumption and compact design, making it ideal for battery-powered portable applications. - Where can I find detailed specifications and pin configurations for the 74AUP1T97GM,115?
Detailed specifications and pin configurations can be found in the datasheet available from the manufacturer's website or through distributors like Digi-Key and Mouser.
