Overview
The 74AUP1G32GW-Q100H is a low-power, 2-input OR gate integrated circuit manufactured by Nexperia USA Inc. This device is part of the 74AUP series and is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), making it suitable for automotive applications. It features Schmitt-trigger action at all inputs, which enhances noise immunity and tolerance to slower input rise and fall times across a wide supply voltage range of 0.8 V to 3.6 V.
Key Specifications
| Parameter | Description | Value |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | - |
| Logic Type | OR Gate | - |
| Number of Circuits | 1 | - |
| Number of Inputs | 2 | - |
| Voltage - Supply | 0.8 V ~ 3.6 V | - |
| Current - Quiescent (Max) | 0.5 µA | - |
| Current - Output High, Low | 4 mA, 4 mA | - |
| Logic Level - Low | 0.9 V | - |
| Logic Level - High | 2 V | - |
| Max Propagation Delay @ V, Max CL | 6.4 ns @ 3.3 V, 30 pF | - |
| Operating Temperature | -40°C ~ 125°C | - |
| Mounting Type | Surface Mount | - |

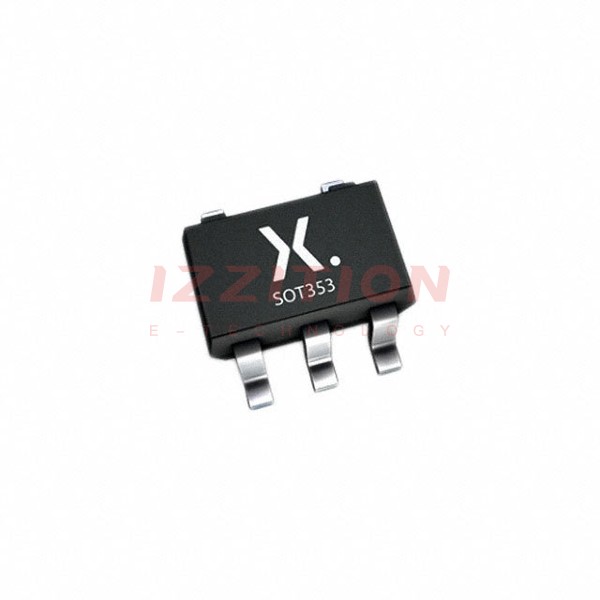

| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | - |
Key Features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Wide supply voltage range from 0.8 V to 3.6 V
- High noise immunity due to Schmitt-trigger action at all inputs
- Low static and dynamic power consumption
- IOFF circuitry for partial power-down mode operation
- ESD protection: HBM (ANSI/ESDA/JEDEC JS-001 class 3A exceeds 5000 V), CDM (ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V)
- Compliance with JEDEC standards (JESD8-12, JESD8-11, JESD8-7, JESD8-5, JESD8-B)
- Low noise overshoot and undershoot < 10% of VCC
- Latch-up performance exceeds 100 mA per JESD 78 Class II
Applications
The 74AUP1G32GW-Q100H is designed for use in various applications, particularly in the automotive sector due to its AEC-Q100 qualification. It is suitable for systems requiring low power consumption and high noise immunity, such as:
- Automotive electronics
- Industrial control systems
- Consumer electronics requiring low power and high reliability
- Embedded systems and IoT devices
Q & A
- What is the primary function of the 74AUP1G32GW-Q100H?
The primary function of the 74AUP1G32GW-Q100H is to provide a single 2-input OR logic gate.
- What is the supply voltage range for this device?
The supply voltage range for this device is from 0.8 V to 3.6 V.
- What is the operating temperature range for this device?
The operating temperature range for this device is from -40°C to 125°C.
- What type of package does the 74AUP1G32GW-Q100H come in?
The 74AUP1G32GW-Q100H comes in a 5-TSSOP, SC-70-5, SOT-353 package.
- Does the 74AUP1G32GW-Q100H have ESD protection?
- What is the maximum propagation delay for this device?
The maximum propagation delay for this device is 6.4 ns at 3.3 V with a load capacitance of 30 pF.
- Is the 74AUP1G32GW-Q100H suitable for automotive applications?
- What is the quiescent current of the 74AUP1G32GW-Q100H?
The quiescent current of the 74AUP1G32GW-Q100H is 0.5 µA (maximum).
- Does the 74AUP1G32GW-Q100H support partial power-down mode?
- What are the key benefits of the Schmitt-trigger action in the 74AUP1G32GW-Q100H?
The Schmitt-trigger action provides high noise immunity and tolerance to slower input rise and fall times across the entire VCC range.
