Overview

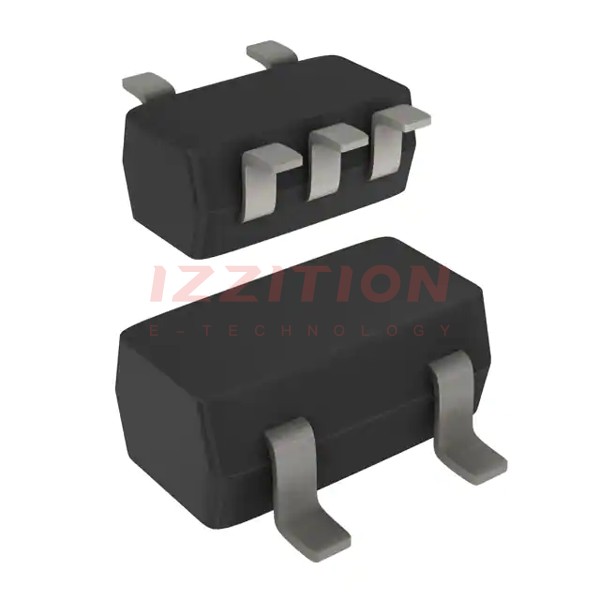

The 74AUP1G32GW-Q100/H is a low-power, single 2-input OR gate integrated circuit produced by Nexperia USA Inc. This component is designed to provide reliable logic functions with minimal power consumption, making it suitable for a variety of applications, especially in environments where power efficiency is crucial. The device features Schmitt-trigger action at all inputs, which enhances its tolerance to slower input rise and fall times, ensuring stable operation in diverse conditions.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage Supply | 0.8V to 3.6V |
| Quiescent Current (Max) | 500 nA |
| Output Current (High/Low) | 4mA / 4mA |
| Operating Temperature | -40°C to +125°C |
| Package Type | TSSOP5 |
| Logic Level | Low |
Key Features
- Low power consumption: Ideal for battery-powered and energy-efficient applications.
- Schmitt-trigger action: Enhances noise immunity and tolerance to slower input rise and fall times.
- Wide operating voltage range: Compatible with various voltage levels from 0.8V to 3.6V.
- Automotive qualified: Meets stringent automotive standards for reliability and performance.
- Compact TSSOP5 package: Suitable for space-constrained designs.
Applications
The 74AUP1G32GW-Q100/H is versatile and can be used in a variety of applications, including:
- Automotive systems: Due to its automotive qualification, it is suitable for use in vehicle electronics.
- Consumer electronics: Ideal for devices requiring low power consumption such as smartphones, tablets, and wearables.
- Industrial control systems: Can be used in control circuits where reliable and efficient logic operations are necessary.
- IoT devices: Suitable for Internet of Things applications where power efficiency is critical.
Q & A
- What is the primary function of the 74AUP1G32GW-Q100/H? The primary function is to provide a single 2-input OR gate logic operation.
- What is the operating voltage range of this IC? The operating voltage range is from 0.8V to 3.6V.
- What is the maximum quiescent current of this device? The maximum quiescent current is 500 nA.
- What type of action does the IC have at its inputs? The IC features Schmitt-trigger action at all inputs.
- What is the package type of the 74AUP1G32GW-Q100/H? The package type is TSSOP5.
- Is this IC automotive qualified? Yes, the 74AUP1G32GW-Q100/H is automotive qualified.
- What are the output current capabilities of this IC? The output current is 4mA for both high and low logic levels.
- What is the operating temperature range of this IC? The operating temperature range is from -40°C to +125°C.
- Why is Schmitt-trigger action important in this IC? Schmitt-trigger action enhances noise immunity and tolerance to slower input rise and fall times.
- In what types of applications is this IC commonly used? It is commonly used in automotive systems, consumer electronics, industrial control systems, and IoT devices.
