Overview

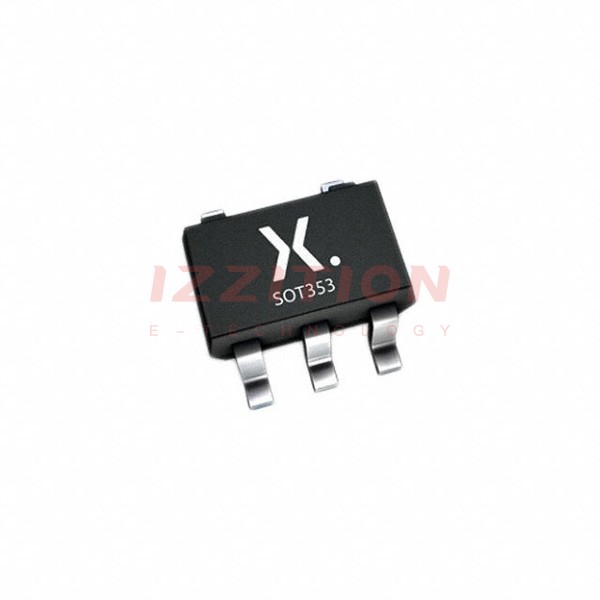

The 74AHC1G86GW,125 is a high-performance, single 2-input XOR gate integrated circuit produced by Nexperia USA Inc. This component is part of the 74AHC series, known for its advanced CMOS technology, which offers low power consumption and high speed. The IC is packaged in a 5-TSSOP (SC-70-5, SOT-353) case, making it suitable for surface mount applications where space efficiency is crucial.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Part Number | 74AHC1G86GW,125 |
| Description | IC GATE XOR 1CH 2-INP 5-TSSOP |
| Voltage - Supply | 2 V ~ 5.5 V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8mA, 8mA |
| Operating Temperature | -40°C ~ 125°C |
| Number of Inputs | 2 |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Max Propagation Delay @ V, Max CL | 8.8ns @ 5V, 50pF |
| Logic Type | XOR (Exclusive OR) |
| Logic Level - Low | 0.5 V ~ 1.65 V |
| Logic Level - High | 1.5 V ~ 3.85 V |
| Package / Case | 5-TSSOP (SC-70-5, SOT-353) |
Key Features
- Low static and dynamic power consumption, making it energy-efficient.
- High speed with a maximum propagation delay of 8.8ns at 5V and 50pF load.
- Small footprint with up to 60% space saving over equivalent leaded packages.
- Operates over a wide voltage range from 2V to 5.5V, enhancing versatility in various applications.
- Surface mount package (5-TSSOP) for easy integration into modern PCB designs.
- Wide operating temperature range from -40°C to 125°C, suitable for diverse environmental conditions.
Applications
- General-purpose logic circuits requiring XOR functionality.
- Embedded systems and microcontrollers where low power consumption is critical.
- Automotive and industrial control systems due to its wide operating temperature range.
- Consumer electronics such as smartphones, tablets, and other portable devices.
- Medical devices and equipment where reliability and low power are essential.
Q & A
- What is the primary function of the 74AHC1G86GW,125 IC?
The primary function is to act as a single 2-input XOR (Exclusive OR) gate.
- What is the voltage supply range for this IC?
The voltage supply range is from 2V to 5.5V.
- What is the maximum quiescent current of the 74AHC1G86GW,125?
The maximum quiescent current is 1 µA.
- What is the maximum propagation delay at 5V and 50pF load?
The maximum propagation delay is 8.8ns at 5V and 50pF load.
- What is the operating temperature range of this IC?
The operating temperature range is from -40°C to 125°C.
- What type of package does the 74AHC1G86GW,125 come in?
The IC comes in a 5-TSSOP (SC-70-5, SOT-353) package.
- Is the 74AHC1G86GW,125 suitable for surface mount applications?
- What are some common applications of the 74AHC1G86GW,125?
It is commonly used in general-purpose logic circuits, embedded systems, automotive and industrial control systems, consumer electronics, and medical devices.
- How does the 74AHC1G86GW,125 contribute to space efficiency in PCB designs?
It offers a small footprint with up to 60% space saving over equivalent leaded packages.
- What are the logic levels for the 74AHC1G86GW,125?
The logic levels are 0.5 V ~ 1.65 V for low and 1.5 V ~ 3.85 V for high.
