Overview

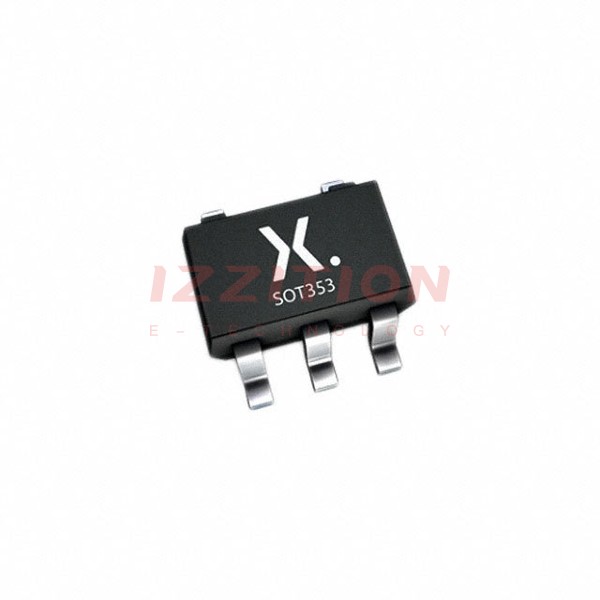

The 74AHC1G86GW,165 is a single 2-input positive exclusive-OR gate integrated circuit (IC) manufactured by Nexperia USA Inc. This device is part of the 74AHC series, known for its high-speed and low power consumption characteristics. It is designed for operation with a supply voltage range of 2.0V to 5.5V, making it versatile for various electronic applications. The IC features a standard push-pull output and is packaged in a 5-TSSOP (SC-70-5, SOT-353) package, which is lead-free and RoHS compliant.
Key Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Description | IC GATE XOR 1CH 2-INP 5-TSSOP |
| Category | Integrated Circuits (ICs) |
| Voltage - Supply | 2 V ~ 5.5 V |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Operating Temperature | -40°C ~ 125°C |
| Number of Inputs | 2 |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Max Propagation Delay @ V, Max CL | 8.8ns @ 5V, 50pF |
| Logic Type | XOR (Exclusive OR) |
| Logic Level - Low | 0.5 V ~ 1.65 V |
| Logic Level - High | 1.5 V ~ 3.85 V |
| Current - Quiescent (Max) | 1µA |
| Current - Output High, Low | 8mA, 8mA |
Key Features
- Supply Voltage Range from 2.0V to 5.5V
- ± 8 mA Output Drive at 5.0V
- CMOS low power consumption
- Schmitt Trigger Action at All Inputs for tolerance to slower input rise and fall times
- ESD Protection per JESD 22: Exceeds 200-V Machine Model, 2000-V Human Body Model, and 1000-V Charged Device Model
- Latch-Up Exceeds 100mA per JESD 78, Class II
- Lead Free Finish / RoHS Compliant
Applications
- General Purpose Logic
- PCs, networking, notebooks, netbooks, PDAs
- Computer peripherals, hard drives, CD/DVD ROM
- TV, DVD, DVR, set top box
- Personal Navigation / GPS
- MP3 players, Cameras, Video Recorders
Q & A
- What is the supply voltage range of the 74AHC1G86GW,165? The supply voltage range is from 2.0V to 5.5V.
- What is the package type of the 74AHC1G86GW,165? The IC is packaged in a 5-TSSOP (SC-70-5, SOT-353) package.
- Is the 74AHC1G86GW,165 RoHS compliant? Yes, it is lead-free and RoHS compliant.
- What is the maximum propagation delay of the 74AHC1G86GW,165? The maximum propagation delay is 8.8ns @ 5V, 50pF.
- What are the logic levels for the 74AHC1G86GW,165? The logic levels are 0.5 V ~ 1.65 V for low and 1.5 V ~ 3.85 V for high.
- What is the quiescent current of the 74AHC1G86GW,165? The quiescent current is 1µA.
- Does the 74AHC1G86GW,165 have ESD protection? Yes, it exceeds 200-V Machine Model, 2000-V Human Body Model, and 1000-V Charged Device Model per JESD 22.
- What are the typical applications of the 74AHC1G86GW,165? It is used in general purpose logic, PCs, networking devices, computer peripherals, and various consumer electronics.
- Is the 74AHC1G86GW,165 suitable for high-temperature environments? Yes, it operates within a temperature range of -40°C to 125°C.
- What is the output drive capability of the 74AHC1G86GW,165? The output drive capability is ± 8 mA at 5.0V.
