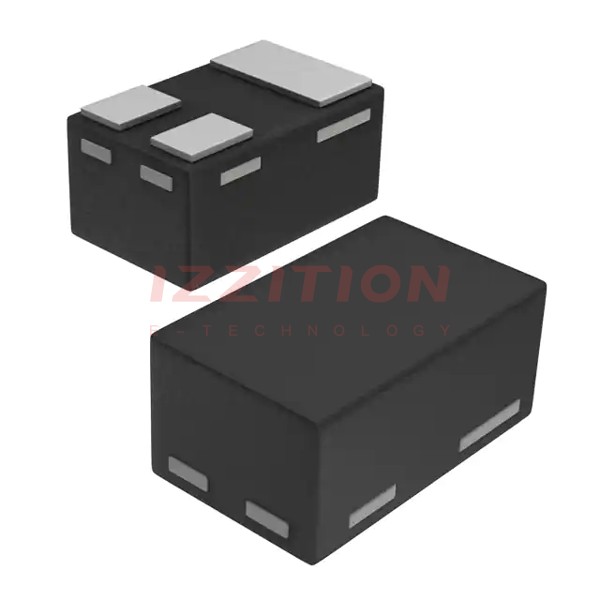

Nexperia USA Inc. 2PC4617RM,315

Manufacturer No:
2PC4617RM,315
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 50V 0.1A SOT883
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2PC4617RM,315 is an NPN general-purpose transistor manufactured by Nexperia USA Inc. This transistor is designed in a leadless ultra-small plastic package, specifically the SOT883 (DFN1006-3) package, which measures 1 mm x 0.6 mm x 0.48 mm. It is AEC-Q101 qualified, making it suitable for automotive applications. The transistor is part of Nexperia’s extensive portfolio of discrete semiconductor products, known for their efficiency, robustness, and reliability across various industries.

Key Specifications

Type number Package version Package name Size (mm) Channel type P tot (mW) V CEO [max] (V) I C [max] (mA) h FE [min] h FE [max] T J [max] (°C) f T [min] (MHz) Automotive qualified
2PC4617RM SOT883 DFN1006-3 1 x 0.6 x 0.48 NPN 250 50 100 180 390 150 100 Yes

Key Features

  • Leadless ultra-small plastic package (SOT883) with dimensions of 1 mm x 0.6 mm x 0.48 mm, providing a small footprint for board space optimization.
  • AEC-Q101 qualified, ensuring reliability and performance in automotive applications.
  • Collector-Emitter Voltage (VCEO) of up to 50 V and Collector Current (IC) of up to 100 mA.
  • Power dissipation of 430 mW, comparable to SOT23 packages.
  • High frequency performance with a minimum transition frequency (fT) of 100 MHz.
  • PNP complement available in the 2PA1776M series.

Applications

  • General purpose small signal DC applications.
  • Low and medium frequency AC applications.
  • Mobile communications, such as in mobile phones and PDAs.
  • Digital (still) cameras and other portable electronic devices.
  • PCMCIA cards and other compact electronic modules.
  • Automotive systems due to its AEC-Q101 qualification.

Q & A

  1. What is the package type of the 2PC4617RM,315 transistor?

    The 2PC4617RM,315 transistor is packaged in a leadless ultra-small plastic package, specifically the SOT883 (DFN1006-3) package.

  2. Is the 2PC4617RM,315 transistor AEC-Q101 qualified?

    Yes, the 2PC4617RM,315 transistor is AEC-Q101 qualified, making it suitable for automotive applications.

  3. What is the maximum collector-emitter voltage (VCEO) of the 2PC4617RM,315 transistor?

    The maximum collector-emitter voltage (VCEO) of the 2PC4617RM,315 transistor is 50 V.

  4. What is the maximum collector current (IC) of the 2PC4617RM,315 transistor?

    The maximum collector current (IC) of the 2PC4617RM,315 transistor is 100 mA.

  5. What is the power dissipation of the 2PC4617RM,315 transistor?

    The power dissipation of the 2PC4617RM,315 transistor is 430 mW.

  6. What is the minimum transition frequency (fT) of the 2PC4617RM,315 transistor?

    The minimum transition frequency (fT) of the 2PC4617RM,315 transistor is 100 MHz.

  7. What are some common applications of the 2PC4617RM,315 transistor?

    The 2PC4617RM,315 transistor is commonly used in general purpose small signal DC applications, low and medium frequency AC applications, mobile communications, digital cameras, and automotive systems.

  8. Is there a PNP complement available for the 2PC4617RM,315 transistor?

    Yes, the PNP complement for the 2PC4617RM,315 transistor is available in the 2PA1776M series.

  9. How can I obtain samples of the 2PC4617RM,315 transistor?

    Samples of the 2PC4617RM,315 transistor can be obtained through Nexperia’s sales organization or through their network of global and regional distributors.

  10. What is the maximum junction temperature (TJ) of the 2PC4617RM,315 transistor?

    The maximum junction temperature (TJ) of the 2PC4617RM,315 transistor is 150°C.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:200mV @ 5mA, 50mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:180 @ 1mA, 6V
Power - Max:430 mW
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-101, SOT-883
Supplier Device Package:SOT-883
0 Remaining View Similar
