Overview

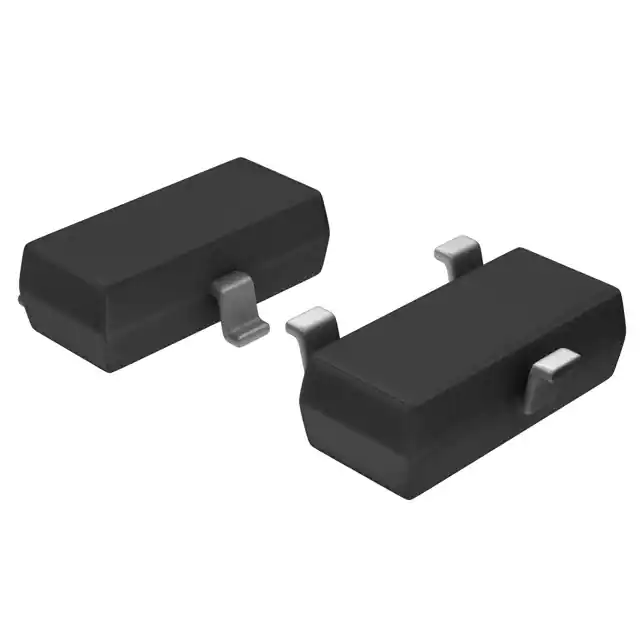

The BZX84C8V2-7-F-31 is a Zener diode produced by Diodes Incorporated. This component is part of the BZX84 series, known for its high reliability and stability in voltage regulation applications. The BZX84C8V2-7-F-31 is specifically designed to operate at a nominal Zener voltage of 8.2V and is packaged in a SOT-23 format, making it suitable for a wide range of electronic circuits where space is a concern.
Key Specifications
| Parameter | Value |
|---|---|
| Zener Voltage (Vz) | 8.2V |
| Package Type | SOT-23 |
| Maximum Power Dissipation (Pd) | 300mW |
| Maximum Operating Temperature (Tj) | 150°C |
| Maximum Reverse Current (Ir) | 100μA |
| Temperature Coefficient (αVz) | -1.5mV/°C to +1.5mV/°C |
Key Features
- High stability and reliability in voltage regulation.
- Compact SOT-23 package for space-saving designs.
- Low temperature coefficient for stable operation over a wide temperature range.
- High power dissipation capability of up to 300mW.
- Suitable for a variety of applications including voltage clamping, voltage regulation, and overvoltage protection.
Applications
The BZX84C8V2-7-F-31 Zener diode is versatile and can be used in various electronic circuits. Some common applications include:
- Voltage regulation and stabilization in power supplies.
- Voltage clamping and overvoltage protection in digital circuits.
- Reference voltage generation in analog circuits.
- Surge protection in automotive and industrial electronics.
Q & A
- What is the nominal Zener voltage of the BZX84C8V2-7-F-31?
The nominal Zener voltage is 8.2V. - What is the package type of the BZX84C8V2-7-F-31?
The package type is SOT-23. - What is the maximum power dissipation of the BZX84C8V2-7-F-31?
The maximum power dissipation is 300mW. - What is the maximum operating temperature of the BZX84C8V2-7-F-31?
The maximum operating temperature is 150°C. - What is the typical application of the BZX84C8V2-7-F-31?
Typical applications include voltage regulation, voltage clamping, and overvoltage protection. - What is the temperature coefficient range of the BZX84C8V2-7-F-31?
The temperature coefficient range is -1.5mV/°C to +1.5mV/°C. - Is the BZX84C8V2-7-F-31 suitable for high-frequency applications?
While it can be used in various applications, it is not specifically optimized for high-frequency use. It is more suited for general voltage regulation and protection. - Can the BZX84C8V2-7-F-31 be used in automotive electronics?
Yes, it can be used in automotive electronics for surge protection and voltage regulation. - What is the maximum reverse current of the BZX84C8V2-7-F-31?
The maximum reverse current is 100μA. - Where can I find detailed specifications and datasheets for the BZX84C8V2-7-F-31?
Detailed specifications and datasheets can be found on the Diodes Incorporated website, as well as on distributor websites like Digi-Key and Mouser Electronics.
