Overview
The BAS40LP-7 is a surface mount Schottky barrier diode produced by Diodes Incorporated. This diode is part of the BAS40 series and is known for its low forward voltage drop, fast switching capabilities, and ultra-small leadless surface mount package. It is designed to provide high reliability and thermal stability, making it suitable for a variety of applications, including automotive and general-purpose use.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Average Rectified Current - Max | IFM | 200 | mA |
| Peak Current - Max | IFRM | 800 | mA |
| Non-Repetitive Peak Forward Surge Current | IFSM | 1000 | mA |
| Reverse Voltage - Max [Vrrm] | VRRM | 40 | V |
| Reverse Current - Max | IR | 200 | nA |
| Power Dissipation | PD | 250 | mW |
| Package Style | DFN-2 (X1-DFN1006-2) | ||
| Mounting Method | Surface Mount | ||
| Operating Temperature Range | TJ | -55 to +150 | °C |
| Storage Temperature Range | TSTG | -65 to +150 | °C |
Key Features
- Low Forward Voltage Drop: The BAS40LP-7 has a lower forward voltage (VF) compared to other Schottky diodes, enhancing efficiency in power applications.
- Fast Switching: This diode is designed for fast switching, making it suitable for high-frequency applications.

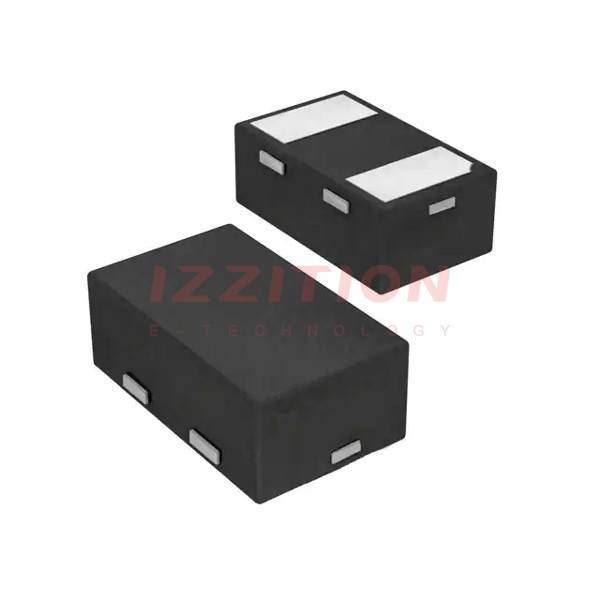

- Ultra-Small Leadless Surface Mount Package: The DFN-2 package is compact and leadless, ideal for space-constrained designs.
- PN Junction Guard Ring for Transient and ESD Protection: Provides enhanced protection against transient voltages and electrostatic discharge (ESD).
- Totally Lead-Free & Fully RoHS Compliant: Meets EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2), and 2015/863/EU (RoHS 3) compliance standards.
- Halogen and Antimony Free: Classified as a “Green” device, containing less than 900ppm bromine, chlorine, and antimony compounds.
Applications
- Automotive Applications: Qualified to AEC-Q100/101/104/200 standards and manufactured in IATF 16949 certified facilities, making it suitable for automotive use.
- General-Purpose Rectification: Used in various rectification applications requiring low forward voltage drop and fast switching.
- Power Management: Suitable for power management circuits in consumer electronics, industrial equipment, and other devices.
Q & A
- What is the maximum reverse voltage of the BAS40LP-7?
The maximum reverse voltage (Vrrm) of the BAS40LP-7 is 40V.
- What is the typical forward current of the BAS40LP-7?
The forward continuous current (IFM) is 200mA.
- What package style does the BAS40LP-7 come in?
The BAS40LP-7 comes in a DFN-2 (X1-DFN1006-2) package.
- Is the BAS40LP-7 RoHS compliant?
Yes, the BAS40LP-7 is fully RoHS compliant and lead-free.
- What are the operating and storage temperature ranges for the BAS40LP-7?
The operating temperature range is -55°C to +150°C, and the storage temperature range is -65°C to +150°C.
- Does the BAS40LP-7 have any special protection features?
Yes, it has a PN junction guard ring for transient and ESD protection.
- What is the power dissipation of the BAS40LP-7?
The power dissipation (PD) is 250mW.
- Is the BAS40LP-7 suitable for automotive applications?
Yes, it is qualified to AEC-Q100/101/104/200 standards and manufactured in IATF 16949 certified facilities.
- What is the typical thermal resistance of the BAS40LP-7?
The typical thermal resistance, junction to ambient (RθJA), is 400°C/W.
- How many units are typically packed in a reel?
Typically, 3000 units are packed in a reel).
