Overview

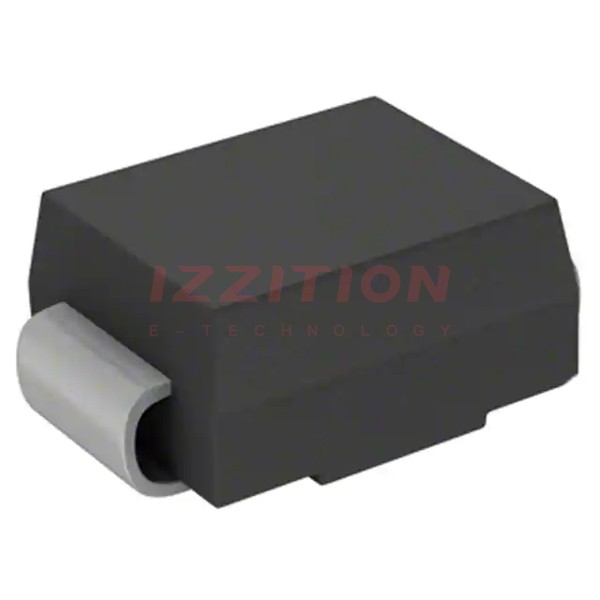

The B340A-13-F is a high-efficiency surface mount Schottky Barrier Rectifier Diode produced by Diodes Incorporated. This component is part of the B340 series and is designed for use in low-voltage, high-frequency applications. It features a molded plastic case with a SMA (DO-214AC, SOD-106) package and is suitable for automated assembly. The diode operates over a wide temperature range from -55°C to +125°C, making it versatile for various industrial and automotive applications.
Key Specifications
| Attribute | Value |
|---|---|
| Average Rectified Current (Max) | 3 A |
| Peak Current (Max) | 100 A |
| Reverse Voltage (Max) [Vrrm] | 40 V |
| Reverse Current (Max) | 0.5 mA |
| Forward Voltage | 0.5 V |
| Package Style | SMA (DO-214AC, SOD-106) |
| Mounting Method | Surface Mount |
| Operating Temperature Range | -55°C to +125°C |
| Storage Temperature Range | -55°C to +150°C |
| Moisture Sensitivity Level | Level 1 per J-STD-020 |
| Terminals | Lead-Free Plating (Matte-Tin Finish) |
Key Features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency
- Surge Overload Rating to 100 A Peak
- For Use in Low Voltage, High Frequency Inverters, Freewheeling, and Polarity Protection Applications
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free; “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Applications
- Low-voltage, high-frequency inverters
- Freewheeling diodes
- DC-DC converters
- Polarity protection applications
- Automotive power management
Q & A
- What is the maximum average rectified current of the B340A-13-F?
The maximum average rectified current is 3 A.
- What is the peak repetitive reverse voltage of the B340A-13-F?
The peak repetitive reverse voltage (Vrrm) is 40 V.
- What is the forward voltage drop of the B340A-13-F at 3 A?
The forward voltage drop at 3 A is 0.5 V.
- What is the operating temperature range of the B340A-13-F?
The operating temperature range is -55°C to +125°C.
- Is the B340A-13-F RoHS compliant?
Yes, the B340A-13-F is RoHS compliant.
- What type of package does the B340A-13-F come in?
The B340A-13-F comes in a SMA (DO-214AC, SOD-106) package.
- What are the typical applications of the B340A-13-F?
Typical applications include low-voltage, high-frequency inverters, freewheeling, DC-DC converters, and polarity protection.
- Is the B340A-13-F suitable for automotive applications?
Yes, it is qualified to AEC-Q101 standards for high reliability and is suitable for automotive power management.
- What is the moisture sensitivity level of the B340A-13-F?
The moisture sensitivity level is Level 1 per J-STD-020.
- Does the B340A-13-F have any special environmental certifications?
Yes, it is halogen and antimony free and is classified as a “Green” device.
