Overview
The BT131-800,116 is a logic-sensitive gate triac produced by WeEn Semiconductors. This component is designed to operate in a wide range of applications requiring high voltage and current handling capabilities. The BT131-800,116 features a voltage off-state of 800V and a current rating of 1A, making it suitable for various power control and switching applications.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | WeEn Semiconductors |
| Part Number | BT131-800,116 |

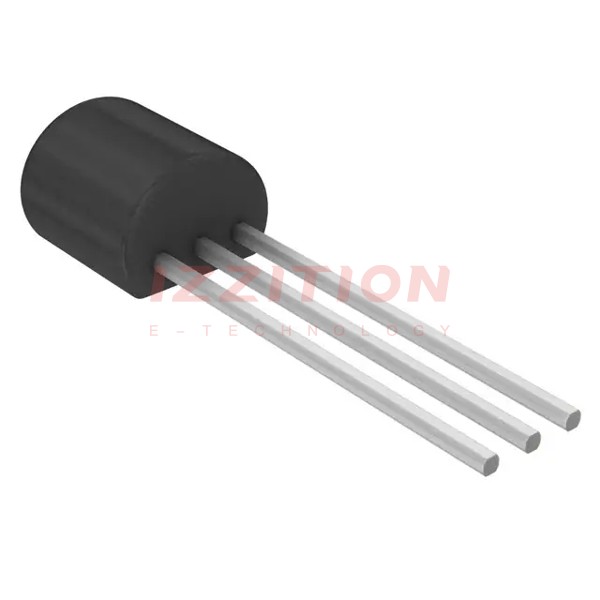

| Package | TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) |
| Voltage Off-State (Vdrm) | 800V |
| Current Rating (It) | 1A |
| Gate Trigger Voltage (Vgt) (Max) | 1.5V |
| Current Hold (Ih) (Max) | 5mA |
| Non-Repetitive Surge Current (Itsm) | 12.5A (50Hz), 13.8A (60Hz) |
Key Features
- High voltage off-state of 800V and current rating of 1A, making it suitable for power control and switching applications.
- Logic-sensitive gate for precise control.
- High commutation three quadrant triacs.
- Features 3Q technology for improved noise immunity and very high immunity to false turn-on by dV/dt.
Applications
- Power control and switching in industrial and consumer electronics.
- Lighting control systems.
- Motor control and speed regulation.
- Heating and cooling control systems.
- General-purpose AC power switching.
Q & A
- What is the voltage off-state of the BT131-800,116?
The voltage off-state of the BT131-800,116 is 800V.
- What is the current rating of the BT131-800,116?
The current rating of the BT131-800,116 is 1A.
- What is the gate trigger voltage (Vgt) of the BT131-800,116?
The gate trigger voltage (Vgt) of the BT131-800,116 is 1.5V.
- What is the non-repetitive surge current (Itsm) of the BT131-800,116?
The non-repetitive surge current (Itsm) of the BT131-800,116 is 12.5A at 50Hz and 13.8A at 60Hz.
- What package types are available for the BT131-800,116?
The BT131-800,116 is available in TO-226-3 and TO-92-3 (TO-226AA) packages with formed leads.
- What technology does the BT131-800,116 feature for noise immunity?
The BT131-800,116 features 3Q technology for improved noise immunity and very high immunity to false turn-on by dV/dt.
- What are some common applications of the BT131-800,116?
Common applications include power control and switching in industrial and consumer electronics, lighting control systems, motor control, heating and cooling control systems, and general-purpose AC power switching.
- What is the current hold (Ih) of the BT131-800,116?
The current hold (Ih) of the BT131-800,116 is 5mA.
- Is the BT131-800,116 suitable for high commutation applications?
Yes, the BT131-800,116 is a high commutation three quadrant triac, making it suitable for high commutation applications.
- Where can I find the datasheet for the BT131-800,116?
The datasheet for the BT131-800,116 can be found on the WeEn Semiconductors website or through distributors like Mouser and Win-Source.
