Overview

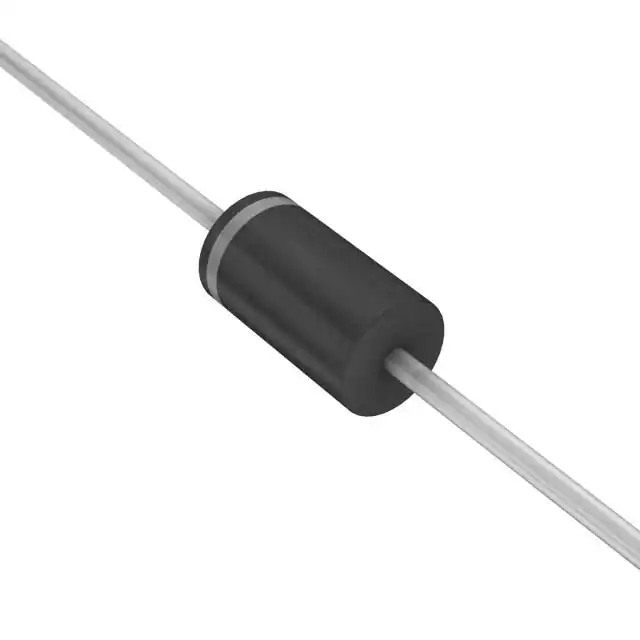

The 1.5KE6.8AHE3_A/C is a Transient Voltage Suppressor (TVS) diode produced by Vishay General Semiconductor - Diodes Division. This component is designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is part of the 1.5KE series, which offers a range of voltage ratings and is available in both unidirectional and bidirectional configurations.
Key Specifications
| Property | Value |
|---|---|
| VR (V standoff) | 5.8 V |
| Watts (W) | 1500 W |
| IPP 10x1000µs (A) | 144.8 A |
| MIN VBR@IT (V) | 6.12 V |
| MAX VBR@IT (V) | 7.475 V |
| VC (V) | 11.025 V |
| IT (mA) | 10 mA |
| Ir@Vr (µA) | 1000 µA |
| Operating Temperature Max (°C) | 175 °C |
| Polarity | Unipolar |
| Package | DO-201 |
| Peak Pulse Power - 10x1000 (W) | 1500 W |
| Surge Life | 144.8 |
| Tolerance % | 10% |
Key Features
- Glass Passivated Chip Junction: Ensures high reliability and stability.
- Peak Pulse Power Capability: 1500 W at 10/1000µs waveform.
- Fast Response Time: Typically less than 1.0 ps from 0 Volts to BV min.
- Excellent Clamping Capability: Effective in protecting against voltage transients.
- AEC-Q101 Qualified: Available for automotive applications, ensuring high reliability.
- RoHS Compliant: Meets environmental regulations.
- ESD Protection: Compliant with IEC 61000-4-2 for ESD protection of data lines.
- EFT Protection: Compliant with IEC 61000-4-4 for EFT protection of data lines.
- Low Incremental Surge Resistance: Minimizes voltage increase during surges.
Applications
The 1.5KE6.8AHE3_A/C TVS diode is used in various applications to protect sensitive electronics against voltage transients. These include:
- Consumer Electronics: Protection of ICs, MOSFETs, and signal lines in consumer devices.
- Computer Systems: Protection against voltage transients in computer hardware.
- Industrial Equipment: Protection of sensitive electronics in industrial settings.
- Automotive Systems: Protection of automotive electronics, especially those requiring AEC-Q101 qualification.
- Telecommunication Systems: Protection of signal lines and sensitive electronics in telecommunication equipment.
Q & A
- What is the peak pulse power capability of the 1.5KE6.8AHE3_A/C?
The peak pulse power capability is 1500 W at 10/1000µs waveform.
- What is the operating temperature range of the 1.5KE6.8AHE3_A/C?
The operating temperature maximum is 175 °C.
- Is the 1.5KE6.8AHE3_A/C RoHS compliant?
- What type of package does the 1.5KE6.8AHE3_A/C come in?
The 1.5KE6.8AHE3_A/C comes in a DO-201 package.
- Does the 1.5KE6.8AHE3_A/C offer ESD protection?
- What is the typical response time of the 1.5KE6.8AHE3_A/C?
The typical response time is less than 1.0 ps from 0 Volts to BV min.
- Is the 1.5KE6.8AHE3_A/C AEC-Q101 qualified?
- What are the typical applications of the 1.5KE6.8AHE3_A/C?
- What is the maximum VBR@IT for the 1.5KE6.8AHE3_A/C?
BR@IT is 7.475 V. - What is the surge life of the 1.5KE6.8AHE3_A/C?
