Overview

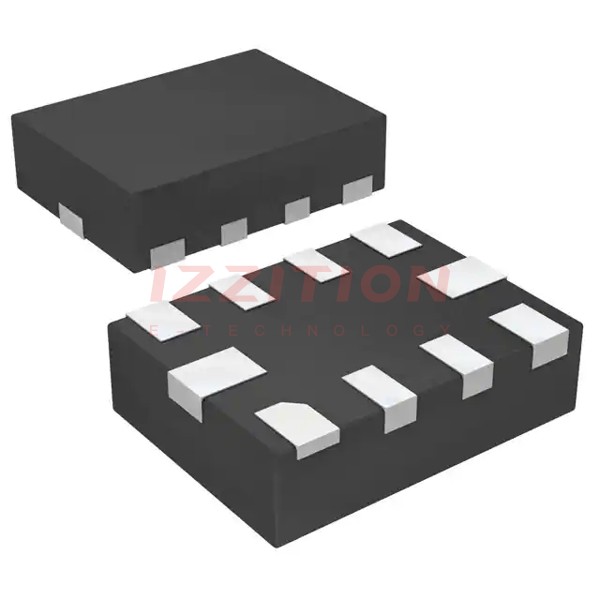

The TPD6E001RSER is a six-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array produced by Texas Instruments. This device is designed to provide robust ESD protection for high-speed data interfaces, adhering to the IEC 61000-4-2 international standard at Level 4. It features low capacitance and ultra-low leakage current, making it ideal for applications requiring precision and high-speed data transfer.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Package Type | UQFN (RSE) | |
| Pins | 10 | |
| Operating Temperature Range | -40 to 85 | °C |
| IO Capacitance | 1.5 | pF (Typical) |
| Leakage Current | 1 | nA (Maximum) |
| Supply Voltage Range | 0.9 to 5.5 | V |
| ESD Protection | ±8-kV IEC 61000-4-2 Contact Discharge, ±15-kV IEC 61000-4-2 Air-Gap Discharge | |
| Breakdown Voltage | 11 | V |
| Supply Current | 1 | nA (Typical) |
Key Features
- IEC 61000-4-2 Level 4 ESD Protection
- ±8-kV IEC 61000-4-2 Contact Discharge and ±15-kV IEC 61000-4-2 Air-Gap Discharge
- Low IO Capacitance: 1.5-pF (Typical) per channel
- Ultra Low Leakage Current: <1 nA (Maximum)
- Low Supply Current: 1 nA (Typical)
- 0.9-V to 5.5-V Supply-Voltage Range
- Space-Saving RSE and RSF Package Options
- Alternate 2-, 3-, 4-Channel Options Available: TPD2E2U06, TPD3E001, and TPD4E1U06
Applications
- High-Speed Data Interfaces (e.g., USB 2.0)
- Portable Data Terminals
- Industrial Monitors
- IP Cameras
- Blood Glucose Meters and Heart Rate Monitors
- Other precision analog measurement devices
Q & A
- What is the TPD6E001RSER used for? The TPD6E001RSER is used for providing ESD protection in high-speed data interfaces.
- What are the key ESD protection levels of the TPD6E001RSER? It provides ±8-kV IEC 61000-4-2 Contact Discharge and ±15-kV IEC 61000-4-2 Air-Gap Discharge protection.
- What is the typical IO capacitance of the TPD6E001RSER? The typical IO capacitance is 1.5 pF per channel.
- What is the maximum leakage current of the TPD6E001RSER? The maximum leakage current is 1 nA.
- What is the operating temperature range of the TPD6E001RSER? The operating temperature range is -40°C to 85°C.
- What package options are available for the TPD6E001RSER? It is available in UQFN (RSE) and WQFN (RSF) packages.
- Are there other channel options available for ESD protection? Yes, there are 2-, 3-, and 4-channel options available as TPD2E2U06, TPD3E001, and TPD4E1U06 respectively.
- What is the recommended layout for using the TPD6E001RSER? It should be placed close to the connectors, with a 0.1-μF capacitor near the VCC pin and sufficient metallization for the VCC and GND loop.
- What are some common applications of the TPD6E001RSER? Common applications include USB 2.0 interfaces, portable data terminals, industrial monitors, IP cameras, and precision analog measurement devices like blood glucose meters and heart rate monitors.
- Does the TPD6E001RSER require an external power supply? No, it is a passive TVS diode and does not require an external power supply, though a 0.1-μF capacitor on the VCC pin is recommended for ESD bypass.
