Overview

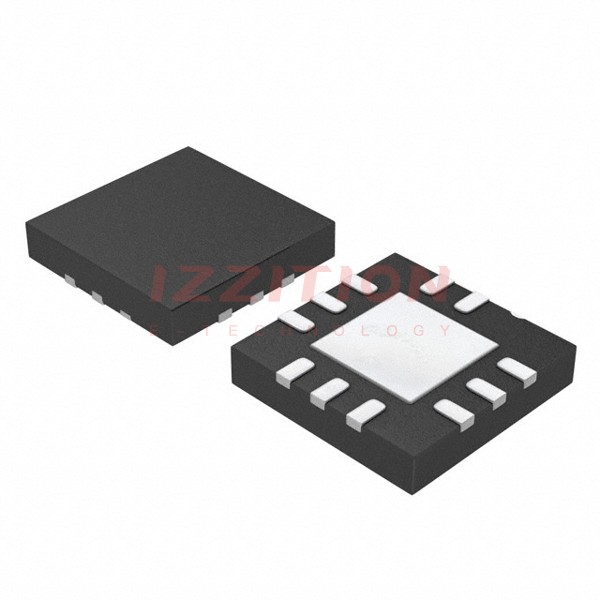

The TPD6E001RSFR, manufactured by Texas Instruments, is a low-capacitance, 6-channel, ±15kV ESD protection array designed for high-speed data interfaces. This product is part of Texas Instruments' robust line of ESD protection devices, aimed at safeguarding sensitive electronic components from electrostatic discharge (ESD) events. The TPD6E001RSFR is particularly suited for applications requiring high-speed data transfer and minimal signal distortion, making it an ideal choice for industries such as consumer electronics, telecommunications, and industrial automation.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Number of Channels | 6 | # | |
| IO Capacitance | 1.5 | pF | Typical |
| Clamping Voltage | 25 | V | |
| ESD Protection Level | ±15kV | kV | IEC 61000-4-2 |
| Operating Temperature Range | -40 to 85 | °C | |
| Package | UQFN | 10 or 12 pins |
Key Features
- Low capacitance per channel ensures minimal signal distortion, ideal for high-speed data interfaces.
- ±15kV ESD protection per IEC 61000-4-2 standards, safeguarding sensitive components.
- Compact UQFN package, suitable for space-constrained applications.
- Wide operating temperature range from -40°C to 85°C, ensuring reliability in various environments.
Applications
The TPD6E001RSFR is widely used in applications that require robust ESD protection and high data integrity. Common applications include USB 2.0 interfaces, Ethernet connections, LVDS (Low Voltage Differential Signaling) systems, and various consumer electronics. Its ability to protect against high-voltage ESD events makes it particularly valuable in environments where electronic devices are susceptible to static discharge, such as in industrial automation and telecommunications equipment.
Q & A
What is the primary function of the TPD6E001RSFR?
The primary function of the TPD6E001RSFR is to provide ESD protection for high-speed data interfaces, ensuring the integrity and reliability of electronic components.
What is the ESD protection level of the TPD6E001RSFR?
The TPD6E001RSFR offers ±15kV ESD protection as per IEC 61000-4-2 standards.
What is the typical IO capacitance of the TPD6E001RSFR?
The typical IO capacitance is 1.5 pF, which is low enough to minimize signal distortion in high-speed data applications.
What is the operating temperature range of the TPD6E001RSFR?
The operating temperature range is from -40°C to 85°C, making it suitable for use in various environmental conditions.
What package does the TPD6E001RSFR come in?
The TPD6E001RSFR is available in a UQFN package with either 10 or 12 pins.
Is the TPD6E001RSFR suitable for USB 2.0 applications?
Yes, the TPD6E001RSFR is well-suited for USB 2.0 applications due to its low capacitance and robust ESD protection.
Can the TPD6E001RSFR be used in industrial automation?
Yes, its wide operating temperature range and high ESD protection make it ideal for industrial automation environments.
What is the clamping voltage of the TPD6E001RSFR?
The clamping voltage is 25V, which helps to limit the voltage to a safe level during an ESD event.
Does the TPD6E001RSFR support LVDS interfaces?
Yes, the TPD6E001RSFR is compatible with LVDS interfaces, providing protection and signal integrity.
What is the significance of the low IO capacitance in the TPD6E001RSFR?
Low IO capacitance is crucial for high-speed data interfaces as it minimizes signal distortion, ensuring data integrity and high performance.
