Overview

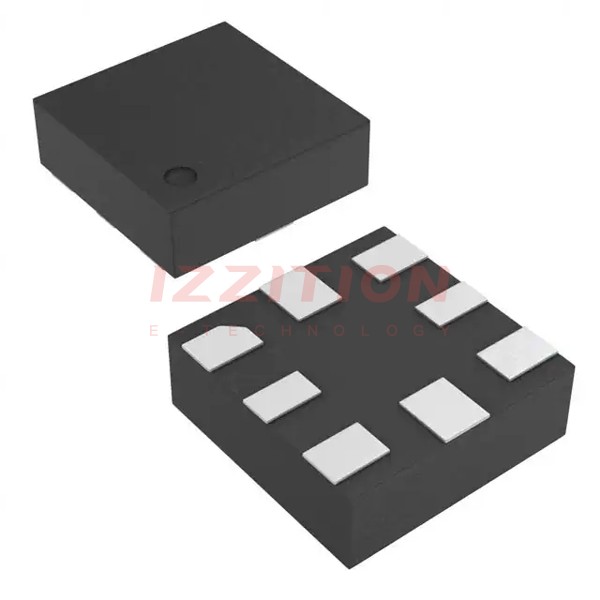

The TPD6E004RSER is a robust ESD protection diode array produced by Texas Instruments, designed to safeguard sensitive electronic components from electrostatic discharge (ESD) and electrical fast transient (EFT) events. This product is categorized as a low-capacitance ESD protection device, ideal for high-speed data line applications. Its market positioning targets designers of consumer electronics, industrial systems, and communication devices, where reliable ESD protection is critical. The TPD6E004RSER stands out for its ultra-low capacitance, compact package, and compliance with industry standards, making it a competitive choice for modern electronic designs.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Number of Channels | 6 | - | Supports multiple data lines |
| ESD Protection Level | ±8 | kV | IEC 61000-4-2 (Contact Discharge) |
| Capacitance (Typical) | 0.5 | pF | Ensures minimal signal distortion |
| Operating Voltage | 5.5 | V | Max continuous operating voltage |
| Package Type | WSON | - | Compact and space-saving |
| Operating Temperature Range | -40 to 125 | °C | Suitable for harsh environments |
| Leakage Current (Max) | 1 | µA | Low power consumption |
| Storage Temperature Range | -65 to 150 | °C | Ensures long-term reliability |
Key Features
- Ultra-Low Capacitance: Minimizes signal distortion, making it ideal for high-speed data lines.
- High ESD Protection: Provides robust protection up to ±8 kV (IEC 61000-4-2).
- Compact Package: WSON package saves board space in compact designs.
- Wide Operating Temperature Range: Ensures reliable performance in harsh environments.
- Low Leakage Current: Reduces power consumption and enhances efficiency.
Applications
The TPD6E004RSER is widely used in applications requiring reliable ESD protection, such as USB ports, HDMI interfaces, and high-speed data lines in consumer electronics. It is also suitable for industrial systems, including PLC modules and communication devices, where robust protection against transient events is essential. Additionally, its compact size and low capacitance make it a preferred choice for IoT devices and wearable electronics.
Q & A
1. What is the primary function of the TPD6E004RSER?
The TPD6E004RSER is designed to protect sensitive electronic components from ESD and EFT events.
2. What is the ESD protection level of this device?
It provides ESD protection up to ±8 kV (IEC 61000-4-2).
3. What is the typical capacitance of the TPD6E004RSER?
The typical capacitance is 0.5 pF.
4. What package type does the TPD6E004RSER use?
It uses a WSON package for compact designs.
5. What is the operating voltage range?
The operating voltage is up to 5.5 V.
6. Is this device suitable for high-speed data lines?
Yes, its ultra-low capacitance makes it ideal for high-speed data lines.
7. What is the maximum leakage current?
The maximum leakage current is 1 µA.
8. Can the TPD6E004RSER operate in harsh environments?
Yes, it has an operating temperature range of -40 to 125°C.
9. What industries commonly use this device?
It is used in consumer electronics, industrial systems, and communication devices.
10. Is the TPD6E004RSER compliant with industry standards?
Yes, it complies with IEC 61000-4-2 for ESD protection.
