Overview
The TPD2E001IDRLRQ1 is a high-performance ESD protection diode array produced by Texas Instruments. Designed for safeguarding sensitive electronic components from electrostatic discharge (ESD), this product is widely used in applications requiring robust protection against transient voltage events. Its compact form factor and low capacitance make it ideal for high-speed data lines, such as USB, HDMI, and Ethernet interfaces. The TPD2E001IDRLRQ1 is particularly suited for consumer electronics, industrial automation, and automotive applications, offering reliable protection in harsh environments.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| ESD Protection Level | ±8 | kV | IEC 61000-4-2 (Contact Discharge) |
| Working Voltage | 5 | V | Maximum continuous voltage |
| Clamping Voltage | 9 | V | At 1 A |
| Capacitance | 0.35 | pF | Typical value per channel |
| Operating Temperature | -40 to 125 | °C | Industrial-grade range |

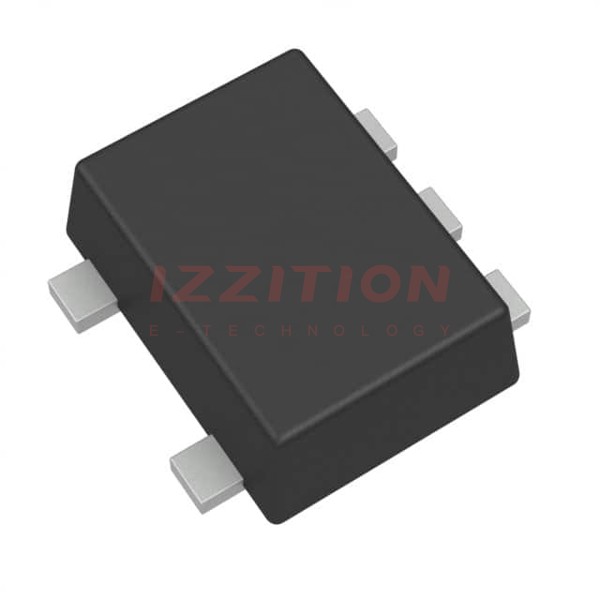

| Package | DRL (SOT-563) | - | Compact surface-mount package |
| Channels | 2 | - | Dual-channel configuration |
| Storage Temperature | -65 to 150 | °C | Safe storage conditions |
Key Features
- High ESD Protection: Provides ±8 kV ESD protection, ensuring reliability in sensitive applications.
- Low Capacitance: 0.35 pF per channel minimizes signal distortion, ideal for high-speed data lines.
- Compact Design: SOT-563 package saves board space, suitable for portable and space-constrained devices.
- Wide Temperature Range: Operates from -40°C to 125°C, making it suitable for industrial and automotive environments.
- Dual-Channel Configuration: Protects two independent lines, enhancing versatility.
Applications
The TPD2E001IDRLRQ1 is widely used in various industries, including:
- Consumer Electronics: Protects USB, HDMI, and Ethernet interfaces in smartphones, tablets, and laptops.
- Industrial Automation: Safeguards communication ports and control systems in harsh environments.
- Automotive Electronics: Ensures reliability in infotainment systems, sensors, and communication modules.
- Networking Equipment: Protects high-speed data lines in routers, switches, and servers.
Q & A
1. What is the ESD protection level of the TPD2E001IDRLRQ1?
The TPD2E001IDRLRQ1 provides ±8 kV ESD protection according to the IEC 61000-4-2 standard.
2. What is the typical capacitance of this device?
The typical capacitance is 0.35 pF per channel, ensuring minimal signal distortion.
3. What is the maximum working voltage?
The maximum continuous working voltage is 5 V.
4. Is this device suitable for automotive applications?
Yes, its wide operating temperature range (-40°C to 125°C) makes it ideal for automotive environments.
5. What package does the TPD2E001IDRLRQ1 use?
It comes in a compact SOT-563 (DRL) package.
6. How many channels does this device have?
It features a dual-channel configuration for protecting two independent lines.
7. What is the clamping voltage of the TPD2E001IDRLRQ1?
The clamping voltage is 9 V at 1 A.
8. Can this device be used in industrial applications?
Yes, its robust design and wide temperature range make it suitable for industrial automation.
9. What is the storage temperature range?
The storage temperature range is -65°C to 150°C.
10. Is the TPD2E001IDRLRQ1 RoHS compliant?
Yes, it is RoHS compliant, ensuring environmental safety.
