Overview
The SN74LVC06ARGYRG4 is a hex inverter buffer/driver produced by Texas Instruments, designed for use in various digital logic applications. This component is part of the SN74LVC06A series, known for its high-speed performance and low power consumption. It features open-drain outputs, making it suitable for applications requiring voltage level translation or bus interfacing. The device operates within a wide voltage range of 1.65V to 3.6V, catering to both low-power and high-performance systems. Its compact VQFN-14 package and SMD/SMT mounting style make it ideal for space-constrained designs.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Function | Hex Inverter Buffer/Driver | - | Open Drain Outputs |
| Manufacturer | Texas Instruments | - | - |

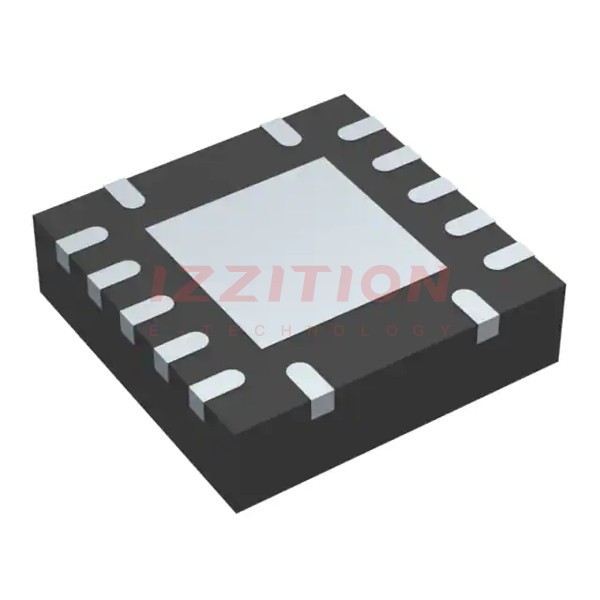

| Package | VQFN-14 | - | SMD/SMT |
| Supply Voltage | 1.65V to 3.6V | V | - |
| Operating Temperature | -40°C to +125°C | °C | - |
| Propagation Delay | 3.7 ns | ns | at 2.7V |
| Output Current | 24 mA | mA | Low Level |
| Static Current | 1 µA | µA | - |
| Number of Channels | 6 | - | - |
| Logic Family | LVC | - | CMOS |
Key Features
- Open-drain outputs for flexible voltage level translation.
- Wide operating voltage range (1.65V to 3.6V) supports diverse applications.
- Low power consumption with a static current of 1 µA.
- High-speed operation with a propagation delay of 3.7 ns.
- Compact VQFN-14 package for space-efficient designs.
- Robust performance across a wide temperature range (-40°C to +125°C).
Applications
The SN74LVC06ARGYRG4 is widely used in digital logic circuits, including voltage level translation, bus interfacing, and signal buffering. Its open-drain outputs make it suitable for I2C and other bus applications. Additionally, it is commonly employed in industrial automation, consumer electronics, and automotive systems where reliable performance and low power consumption are critical.
Q & A
1. What is the operating voltage range of SN74LVC06ARGYRG4?
The operating voltage range is 1.65V to 3.6V.
2. What is the package type of this component?
It comes in a VQFN-14 package.
3. What is the maximum propagation delay?
The maximum propagation delay is 3.7 ns at 2.7V.
4. Can this component be used for voltage level translation?
Yes, its open-drain outputs make it suitable for voltage level translation.
5. What is the low-level output current?
The low-level output current is 24 mA.
6. Is this component RoHS compliant?
Yes, it is RoHS compliant.
7. What is the static current consumption?
The static current is 1 µA.
8. What is the operating temperature range?
It operates from -40°C to +125°C.
9. How many channels does this component have?
It has 6 channels.
10. What is the logic family of this component?
It belongs to the LVC logic family.
