Overview
The SN74LVC04ARGYRG4 is a hex inverter gate IC manufactured by Texas Instruments. It belongs to the LVC (Low-Voltage CMOS) family, designed for high-speed, low-power operation. This product is widely used in digital logic circuits, offering reliable performance in a compact package. Its market positioning targets applications requiring efficient signal inversion and buffering, making it ideal for industries such as consumer electronics, industrial automation, and telecommunications. The SN74LVC04ARGYRG4 stands out for its low power consumption, wide operating voltage range, and robust ESD protection, making it a competitive choice in the logic gate IC market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Logic Type | Hex Inverter | - | 6 independent inverters |
| Supply Voltage Range | 1.65 to 3.6 | V | Low-voltage operation |
| Input Voltage Range | 0 to 5.5 | V | Compatible with higher voltage signals |
| Propagation Delay | 3.8 | ns | Typical at 3.3V |
| Operating Temperature Range | -40 to 85 | °C | Industrial-grade |

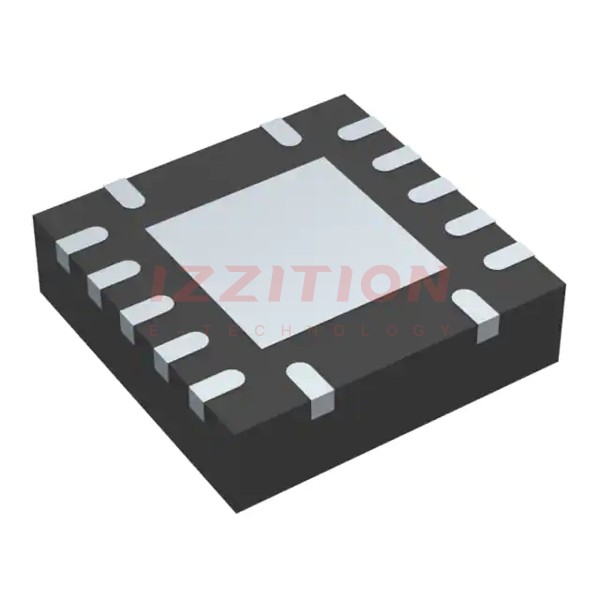

| Package | VQFN-14 | - | Compact and space-saving |
| ESD Protection | ±2000 | V | Human Body Model (HBM) |
| Output Drive Capability | ±24 | mA | High drive strength |
Key Features
- Low Power Consumption: Optimized for battery-powered and energy-efficient applications.
- Wide Operating Voltage Range: Supports 1.65V to 3.6V, ensuring compatibility with various systems.
- High-Speed Operation: Propagation delay of 3.8 ns at 3.3V for fast signal processing.
- Robust ESD Protection: ±2000V HBM ensures reliability in harsh environments.
- Compact Package: VQFN-14 package saves board space and enhances design flexibility.
Applications
The SN74LVC04ARGYRG4 is versatile and finds applications in multiple fields. In consumer electronics, it is used for signal inversion and buffering in devices like smartphones and tablets. In industrial automation, it ensures reliable logic-level shifting and signal conditioning. Additionally, it is employed in telecommunications for high-speed data processing and in automotive electronics for low-power, robust signal management. Its wide operating voltage range and compact design make it suitable for space-constrained and power-sensitive applications.
Q & A
1. What is the logic type of the SN74LVC04ARGYRG4?
It is a hex inverter gate IC, containing six independent inverters.
2. What is the supply voltage range for this IC?
The supply voltage range is 1.65V to 3.6V.
3. Is the SN74LVC04ARGYRG4 compatible with higher voltage signals?
Yes, it supports an input voltage range of 0 to 5.5V.
4. What is the typical propagation delay of this IC?
The typical propagation delay is 3.8 ns at 3.3V.
5. What is the operating temperature range?
It operates within a temperature range of -40°C to 85°C.
6. What package does the SN74LVC04ARGYRG4 use?
It uses a VQFN-14 package.
7. Does this IC have ESD protection?
Yes, it provides ESD protection of ±2000V (HBM).
8. What is the output drive capability of this IC?
It has an output drive capability of ±24 mA.
9. Is the SN74LVC04ARGYRG4 suitable for automotive applications?
Yes, its robust design and wide operating voltage range make it suitable for automotive electronics.
10. What are the key advantages of this IC?
Its key advantages include low power consumption, high-speed operation, wide voltage range, and compact packaging.
