Overview
The SN74AVC1T45 is a single-bit noninverting bus transceiver produced by Texas Instruments. This device is designed for asynchronous communication between two data buses and operates with two separate configurable power-supply rails. The SN74AVC1T45 is functional with VCCA/VCCB as low as 1.2V and supports universal low-voltage, bidirectional translation between various voltage nodes (1.2V, 1.5V, 1.8V, 2.5V, and 3.3V).
Key Specifications

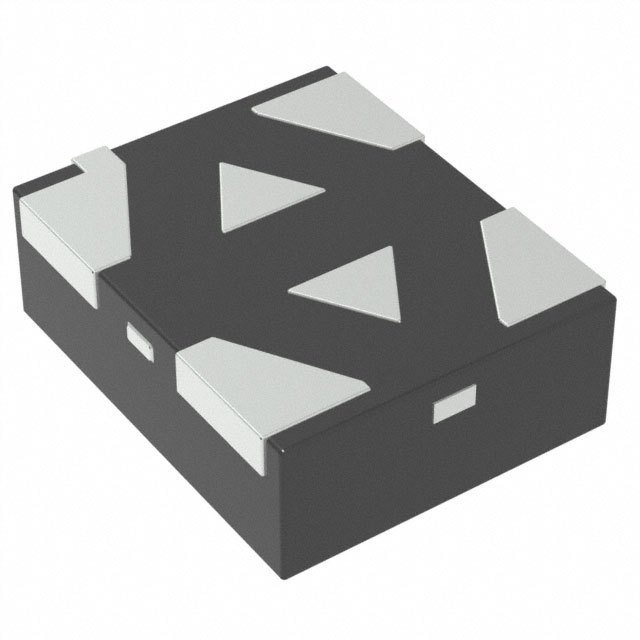

| Parameter | Value | Unit |
|---|---|---|
| Operating Temperature Range | -40 to 85 | °C |
| Supply Voltage Range (VCCA/VCCB) | 1.2 to 3.6 | V |
| Output Drive at 3.3V | ±12 | mA |
| I/O Tolerance | 4.6 | V |
| Maximum Data Rates | 500 Mbps (1.8V to 3.3V translation) | Mbps |
| ESD Protection | ±2000V Human Body Model | V |
| Package Type | SOT-SC70 (DCK) | |
| Number of Pins | 6 | |
| Propagation Delay (Typical) | 5.6 | ns |
Key Features
- Available in Texas Instruments NanoFree™ package.
- Fully configurable dual-rail design allowing each port to operate over the full 1.2V to 3.6V power-supply range.
- VCC isolation feature – if either VCC input is at GND, then both ports are in the high-impedance state.
- DIR input circuit referenced to VCCA.
- I/Os are 4.6V tolerant.
- Ioff supports partial-power-down mode operation.
- High-speed data rates up to 500 Mbps.
- ESD protection exceeds JESD 22 standards.
Applications
The SN74AVC1T45 is suitable for various applications including:
- Personal electronics.
- Industrial systems.
- Enterprise solutions.
- Telecom equipment.
Q & A
- What is the operating temperature range of the SN74AVC1T45?
The operating temperature range is -40°C to 85°C.
- What is the supply voltage range for VCCA and VCCB?
The supply voltage range for both VCCA and VCCB is from 1.2V to 3.6V.
- What is the maximum output drive at 3.3V?
The maximum output drive at 3.3V is ±12 mA.
- Is the SN74AVC1T45 ESD protected?
- What is the typical propagation delay of the SN74AVC1T45?
The typical propagation delay is 5.6 ns.
- Can the SN74AVC1T45 operate in partial-power-down mode?
- What is the maximum data rate for 1.8V to 3.3V translation?
- What package type is the SN74AVC1T45 available in?
- How many pins does the SN74AVC1T45 have?
- Is the SN74AVC1T45 RoHS compliant?
