Overview
The ADS5409IZAYR is a high-performance, dual-channel 12-bit analog-to-digital converter (ADC) produced by Texas Instruments. This device is designed to operate at a maximum clock rate of 900 Msps, making it suitable for high-speed data acquisition and signal processing applications. The ADS5409 features low-noise performance and outstanding spurious-free dynamic range (SFDR) over a wide input-frequency range, ensuring high linearity and accuracy in various demanding environments.
The ADC includes an analog input buffer with high impedance, which isolates the internal switching of the on-chip track-and-hold from disturbing the signal source. It also supports optional 2x decimation with low-pass or high-pass filters, enhancing its versatility in different application scenarios.
Key Specifications
| Parameter | Value | Units |
|---|---|---|
| Resolution | 12-bit | |
| Maximum Clock Rate | 900 Msps | |
| Differential Input Full-Scale | 1.0 Vpp | |
| Input Bandwidth (3dB) | >1.2 GHz | |
| SNR at fin = 230 MHz | 61.0 dBFS | |
| SFDR at fin = 230 MHz | 76 dBc | |
| Power Dissipation per Channel | 1.1 W | |

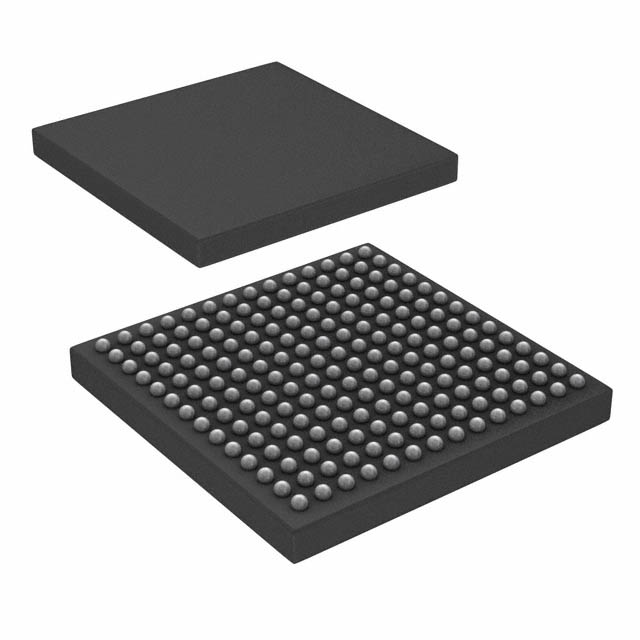

| Package Type | 196-pin BGA (12x12mm) | |
| Operating Temperature Range | -40°C to 85°C |
Key Features
- Dual-channel operation with 12-bit resolution and 900 Msps sampling rate.
- High linearity and low-noise performance for high SFDR and SNR.
- Analog input buffer with high impedance to isolate internal switching from the signal source.
- Optional 2x decimation with low-pass or high-pass filters.
- Data output interface via DDR LVDS.
- Overrange indicators for both channels.
- Synchronization output signal for synchronizing multiple ADCs.
- Multiple power supply options: 3.3V analog supply, 1.8V analog and clock supplies, and 1.8V digital and LVDS supplies.
Applications
- Test and Measurement Instrumentation
- Ultra-Wide Band Software Defined Radio
- Data Acquisition
- Power Amplifier Linearization
- Signal Intelligence and Jamming
- Radar and Satellite Systems
- Microwave Receivers
- Cable Infrastructure
- Non-Destructive Testing
Q & A
- What is the maximum sampling rate of the ADS5409?
The ADS5409 operates at a maximum clock rate of 900 Msps.
- What is the resolution of the ADS5409 ADC?
The ADS5409 has a 12-bit resolution.
- What is the input bandwidth of the ADS5409?
The input bandwidth of the ADS5409 is greater than 1.2 GHz.
- What is the SNR of the ADS5409 at 230 MHz input frequency?
The SNR at 230 MHz input frequency is 61.0 dBFS.
- What is the SFDR of the ADS5409 at 230 MHz input frequency?
The SFDR at 230 MHz input frequency is 76 dBc.
- What is the power dissipation per channel of the ADS5409?
The power dissipation per channel is 1.1 W.
- What package type is the ADS5409 available in?
The ADS5409 is available in a 196-pin BGA package (12x12mm).
- What is the operating temperature range of the ADS5409?
The operating temperature range is -40°C to 85°C.
- Does the ADS5409 support synchronization of multiple ADCs?
Yes, the ADS5409 includes a synchronization output signal for synchronizing multiple ADCs.
- What are the typical applications of the ADS5409?
The ADS5409 is used in test and measurement instrumentation, ultra-wide band software defined radio, data acquisition, power amplifier linearization, signal intelligence and jamming, radar and satellite systems, microwave receivers, cable infrastructure, and non-destructive testing.
