Overview

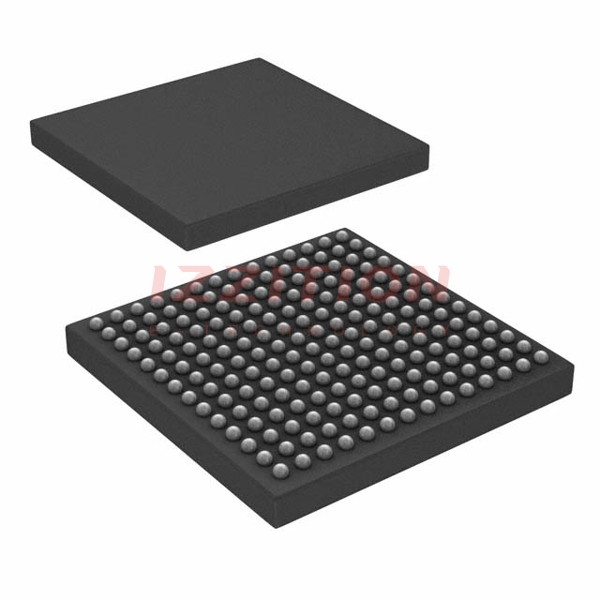

The ADS5404IZAYR is a high-performance, dual-channel, 12-bit analog-to-digital converter (ADC) produced by Texas Instruments. This device is designed to ease front-end filter design for wide bandwidth receivers, offering high linearity and low-noise performance. The ADC features an analog input buffer with high-impedance input, which isolates the internal switching of the on-chip track-and-hold from disturbing the signal source. It is available in a 196-pin NFBGA (ZAY) package and operates over the full industrial temperature range of –40°C to 85°C.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Number of Channels | 2 | |
| Resolution | 12-bit | |
| Maximum Clock Rate | 500 | MSPS |
| Fullscale Input Range | 1.0 | Vpp |
| Input Bandwidth (3 dB) | >1.2 | GHz |
| Data Output Interface | DDR LVDS | |
| Package Type | 196-Pin BGA (12×12mm) | |
| Power Dissipation per Channel | 910 | mW |
| Operating Temperature Range | –40 to 85 | °C |
| SNR at fin = 230 MHz IF | 60.6 | dBFS |
| SFDR at fin = 230 MHz IF | 77 | dBc |
| SNR at fin = 700 MHz IF | 59.4 | dBFS |
| SFDR at fin = 700 MHz IF | 70 | dBc |
Key Features
- Dual-channel configuration for simultaneous sampling of two analog inputs.
- 12-bit resolution with a maximum clock rate of 500 MSPS.
- Low swing fullscale input of 1.0 Vpp.
- Analog input buffer with high-impedance input to isolate internal switching from the signal source.
- Input bandwidth of more than 1.2 GHz.
- Data output interface using DDR LVDS.
- Available in a 196-pin BGA package (12×12mm).
- High SFDR and low-noise performance over a large input-frequency range.
- Optional decimation of output data by two.
Applications
- Test and Measurement Instrumentation
- Ultra-Wide Band Software Defined Radio
- Data Acquisition
- Power Amplifier Linearization
- Signal Intelligence and Jamming
- Radar and Satellite Systems
- Microwave Receivers
Q & A
- What is the resolution and maximum clock rate of the ADS5404IZAYR?
The ADS5404IZAYR has a 12-bit resolution and a maximum clock rate of 500 MSPS.
- What type of package does the ADS5404IZAYR come in?
The device is available in a 196-pin BGA package (12×12mm).
- What is the input bandwidth of the ADS5404IZAYR?
The input bandwidth is more than 1.2 GHz.
- What is the power dissipation per channel for the ADS5404IZAYR?
The power dissipation per channel is 910 mW.
- What are the key applications of the ADS5404IZAYR?
The device is used in test and measurement instrumentation, ultra-wide band software defined radio, data acquisition, power amplifier linearization, signal intelligence and jamming, radar and satellite systems, and microwave receivers.
- What is the operating temperature range of the ADS5404IZAYR?
The operating temperature range is –40°C to 85°C.
- What is the SNR and SFDR performance of the ADS5404IZAYR at different input frequencies?
At fin = 230 MHz IF, SNR is 60.6 dBFS and SFDR is 77 dBc. At fin = 700 MHz IF, SNR is 59.4 dBFS and SFDR is 70 dBc.
- Does the ADS5404IZAYR support decimation of output data?
Yes, the output data can be decimated by two.
- What type of data output interface does the ADS5404IZAYR use?
The device uses DDR LVDS for data output.
- How does the analog input buffer of the ADS5404IZAYR function?
The analog input buffer isolates the internal switching of the on-chip track-and-hold from disturbing the signal source and provides a high-impedance input.
