Overview

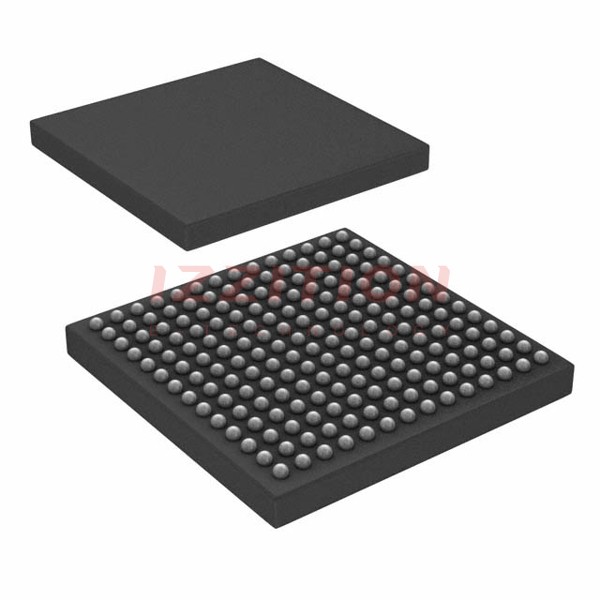

The ADS5402IZAYR is a high-performance, dual-channel, 12-bit analog-to-digital converter (ADC) manufactured by Texas Instruments. This device is designed to ease front-end filter design for wide bandwidth receivers, offering high linearity and low-noise performance. The ADC features an analog input buffer that isolates the internal switching of the on-chip track-and-hold from disturbing the signal source, providing a high-impedance input. It is specified over the full industrial temperature range of –40°C to 85°C and is available in a 196-pin NFBGA package.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 2 |
| Resolution | 12-bit |
| Maximum Clock Rate | 800 Msps |
| Fullscale Input | 1.0 Vpp |
| Input Bandwidth (3dB) | >1.2 GHz |
| Data Output Interface | DDR LVDS |
| Package Type | 196-Pin NFBGA (12×12mm) |
| Operating Temperature Range | –40°C to 85°C |
| Voltage - Supply, Analog | 1.7 V ~ 1.9 V, 3.15 V ~ 3.45 V |
| Voltage - Supply, Digital | 1.7 V ~ 1.9 V |
Key Features
- Dual-channel operation
- 12-bit resolution
- Maximum clock rate of 800 Msps
- Low swing fullscale input: 1.0 Vpp
- Analog input buffer with high-impedance input
- Input bandwidth (3dB): >1.2 GHz
- Data output interface: DDR LVDS
- Optional 2x decimation with low pass or high pass filter
- Simultaneous sampling
Applications
The ADS5402IZAYR is suitable for various high-speed data acquisition applications, including:
- Wide bandwidth receivers
- Radar systems
- Medical imaging equipment
- High-speed data acquisition systems
- Communication systems requiring high SFDR and low noise performance
Q & A
- What is the resolution of the ADS5402IZAYR ADC?
The ADS5402IZAYR has a 12-bit resolution.
- What is the maximum clock rate of the ADS5402IZAYR?
The maximum clock rate is 800 Msps.
- What type of package does the ADS5402IZAYR come in?
The device is available in a 196-pin NFBGA package.
- What is the operating temperature range of the ADS5402IZAYR?
The operating temperature range is –40°C to 85°C.
- What is the input bandwidth (3dB) of the ADS5402IZAYR?
The input bandwidth (3dB) is greater than 1.2 GHz.
- Does the ADS5402IZAYR support simultaneous sampling?
- What is the data output interface of the ADS5402IZAYR?
The data output interface is DDR LVDS.
- Can the output data of the ADS5402IZAYR be decimated?
- What are the typical supply voltages for the ADS5402IZAYR?
The analog supply voltage is 1.7 V ~ 1.9 V and 3.15 V ~ 3.45 V, while the digital supply voltage is 1.7 V ~ 1.9 V.
- What are some common applications of the ADS5402IZAYR?
