Overview

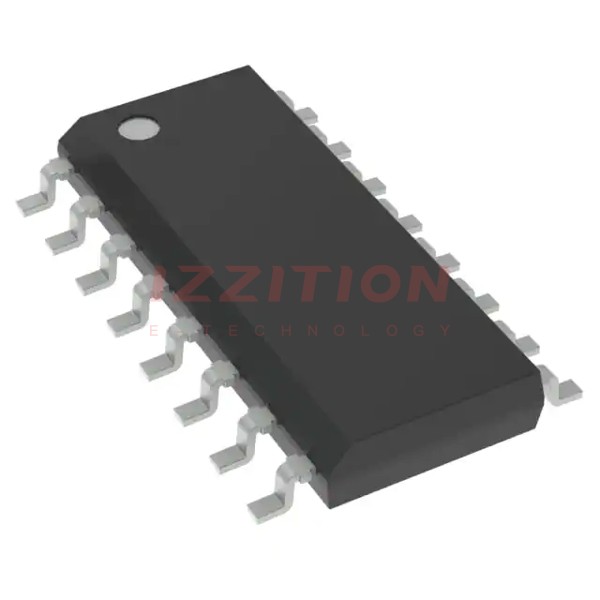

The VNH7100ASTR is a fully integrated H-bridge motor driver produced by STMicroelectronics. This device is designed for a wide range of automotive applications and features a dual monolithic high-side driver and two low-side switches. The switches are built using STMicroelectronics' proprietary VIPower® M0 technology, which integrates a true Power MOSFET with intelligent signal and protection circuitry. The VNH7100ASTR is packaged in a 16-pin SOIC (Small Outline Integrated Circuit) package, ensuring superior manufacturability at the board level.
Key Specifications
| Parameter | Value |
|---|---|
| Output Current | 15 A (typical per leg) |
| Supply Voltage | 4 V to 28 V |
| Operating Temperature | -40°C to 150°C |
| Package Type | 16-SOIC (0.154, 3.90mm Width) |
| Mounting Type | Surface Mount |
| PWM Frequency | Up to 20 kHz |
| RDS(on) | 100 mΩ (typical per leg) |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Yes |
Key Features
- AEC-Q100 qualified for automotive applications
- 3 V CMOS-compatible inputs
- Undervoltage shutdown and overvoltage clamp
- Thermal shutdown and cross-conduction protection
- Current and power limitation
- Very low standby power consumption
- Protection against loss of ground and loss of VCC
- MultiSense diagnostic functions including analog motor current feedback, output short to ground detection, thermal shutdown indication, OFF-state open-load detection, and output short to VCC detection
- Output protected against short to ground and short to VCC
- Standby Mode and Half Bridge Operation
- PWM operation up to 20 kHz
Applications
The VNH7100ASTR is primarily designed for automotive applications, including but not limited to:
- Electric power steering systems
- Electric pumps and fans
- Actuators and valves
- Other automotive motor control systems
Q & A
- What is the maximum output current of the VNH7100ASTR?
The maximum output current is 15 A (typical per leg).
- What is the operating temperature range of the VNH7100ASTR?
The operating temperature range is -40°C to 150°C.
- What type of package does the VNH7100ASTR come in?
The VNH7100ASTR is packaged in a 16-pin SOIC (Small Outline Integrated Circuit) package.
- Is the VNH7100ASTR RoHS compliant?
Yes, the VNH7100ASTR is ROHS3 compliant.
- What is the maximum PWM frequency supported by the VNH7100ASTR?
The maximum PWM frequency is up to 20 kHz.
- Does the VNH7100ASTR have built-in diagnostic functions?
Yes, it includes MultiSense diagnostic functions such as analog motor current feedback, output short to ground detection, thermal shutdown indication, OFF-state open-load detection, and output short to VCC detection.
- Is the VNH7100ASTR protected against overvoltage and undervoltage conditions?
Yes, it has built-in overvoltage clamp and undervoltage shutdown protections.
- What type of motor does the VNH7100ASTR support?
The VNH7100ASTR supports brushed DC motors.
- Is the VNH7100ASTR lead-free?
Yes, the VNH7100ASTR is lead-free.
- What is the moisture sensitivity level (MSL) of the VNH7100ASTR?
The MSL is 3 (168 Hours).
