Overview
The VND830LSP13TR is a monolithic double-channel high-side driver designed by STMicroelectronics using their VIPower™ M0-3 technology. This device is intended for driving various types of loads with one side connected to ground. It features advanced protection mechanisms and is suitable for applications requiring robust and reliable high-side switching.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| RDS(on) | 60 mΩ (Max) | - |
| IOUT (Max) | 18 A (Per each channel) | A |
| VCC | 5.5 V to 36 V | V |
| Operating Temperature | -40°C to 150°C (TJ) | °C |
| Number of Outputs | 2 | - |

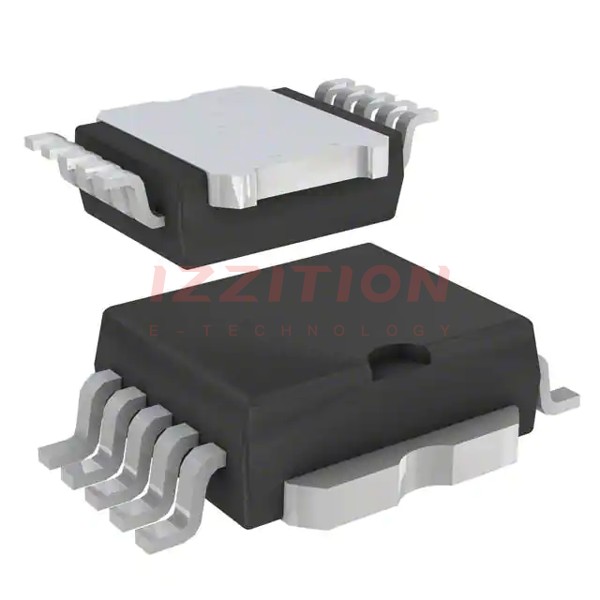

| Package | PowerSO-10 Exposed Bottom Pad | - |
| Output Type | N-Channel High Side | - |
| Input Type | Non-Inverting | - |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | - |
Key Features
- CMOS compatible inputs
- Open drain status outputs
- On-state and off-state open-load detection
- Shorted load protection
- Undervoltage and overvoltage shutdown
- Loss of ground protection
- Very low standby current
- Reverse battery protection
- Active current limitation with thermal shutdown and automatic restart
- Active VCC pin voltage clamp for protection against low energy spikes
Applications
The VND830LSP13TR is suitable for a variety of applications, including but not limited to:
- Automotive systems requiring high-side switching
- Industrial control systems
- Power management in electronic devices
- Load management in battery-powered systems
- Protection and control in lighting systems
Q & A
- What is the maximum output current per channel for the VND830LSP13TR?
The maximum output current per channel is 18 A.
- What is the operating voltage range for the VND830LSP13TR?
The operating voltage range is from 5.5 V to 36 V.
- What type of package does the VND830LSP13TR come in?
The device comes in a PowerSO-10 Exposed Bottom Pad package.
- Does the VND830LSP13TR have overvoltage protection?
Yes, it has undervoltage and overvoltage shutdown protection.
- Is the VND830LSP13TR RoHS compliant?
Yes, it is lead-free and RoHS compliant.
- What is the maximum operating temperature for the VND830LSP13TR?
The maximum operating temperature is 150°C (TJ).
- Does the VND830LSP13TR have thermal shutdown and automatic restart?
Yes, it features active current limitation with thermal shutdown and automatic restart.
- How many outputs does the VND830LSP13TR have?
The device has 2 outputs.
- What type of inputs does the VND830LSP13TR have?
The device has CMOS compatible, non-inverting inputs.
- Does the VND830LSP13TR protect against shorted loads?
Yes, it has shorted load protection.
