Overview
The VN808CM-32-E is a monolithic device designed with STMicroelectronics' VIPower M0-3 technology. It is intended to drive any kind of load with one side connected to ground and can be driven using a 3.3 V logic supply. This device is particularly suited for industrial applications, conforming to IEC 61131 standards. It features advanced protection mechanisms such as active current limitation, thermal shutdown, and automatic restart, ensuring robust operation under various conditions.
Key Specifications
| Specification | Value |
|---|---|
| Number of Drivers | 8 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 24 V |
| Output Configuration | High Side Driver |
| Nominal Supply Current | 12 mA |

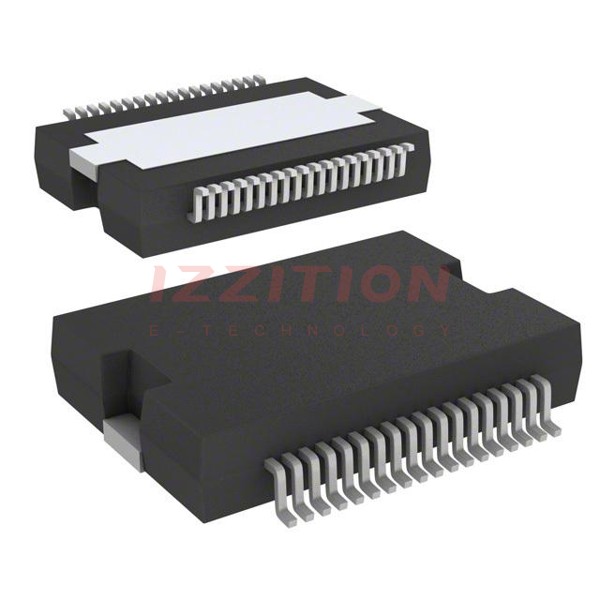

| Package | PowerSO 36 |
| Grade | Industrial |
| RoHS Compliance Grade | Ecopack1 |
| Operating Temperature (°C) Min | -40 |
| Operating Temperature (°C) Max | 150 |
Key Features
- CMOS compatible input
- Junction overtemperature protection
- Case overtemperature protection for thermal independence of the channels
- Current limitation
- Shorted load protection
- Undervoltage shutdown
- Protection against loss of ground
- Very low standby current
- Compliance to 61000-4-4 IEC test up to 4 kV
Applications
The VN808CM-32-E is especially suitable for industrial applications, including those that conform to IEC 61131 standards. It can be used in various industrial control systems, motor control, and other applications where robust and reliable high-side driving is required.
Q & A
- What is the VN808CM-32-E used for? The VN808CM-32-E is used to drive any kind of load with one side connected to ground, particularly in industrial applications.
- What is the logic supply voltage for the VN808CM-32-E? The device can be driven using a 3.3 V logic supply.
- What protection mechanisms does the VN808CM-32-E have? It features active current limitation, thermal shutdown, automatic restart, junction overtemperature protection, case overtemperature protection, shorted load protection, undervoltage shutdown, and protection against loss of ground.
- What is the operating supply voltage of the VN808CM-32-E? The operating supply voltage is 24 V.
- How many drivers and outputs does the VN808CM-32-E have? It has 8 drivers and 8 outputs.
- What is the package type of the VN808CM-32-E? The package type is PowerSO 36.
- Is the VN808CM-32-E RoHS compliant? Yes, it is RoHS compliant with an Ecopack1 grade.
- What are the operating temperature ranges for the VN808CM-32-E? The operating temperature ranges from -40°C to 150°C.
- What standards does the VN808CM-32-E conform to? It conforms to IEC 61131 standards.
- What is the nominal supply current of the VN808CM-32-E? The nominal supply current is 12 mA.
