Overview

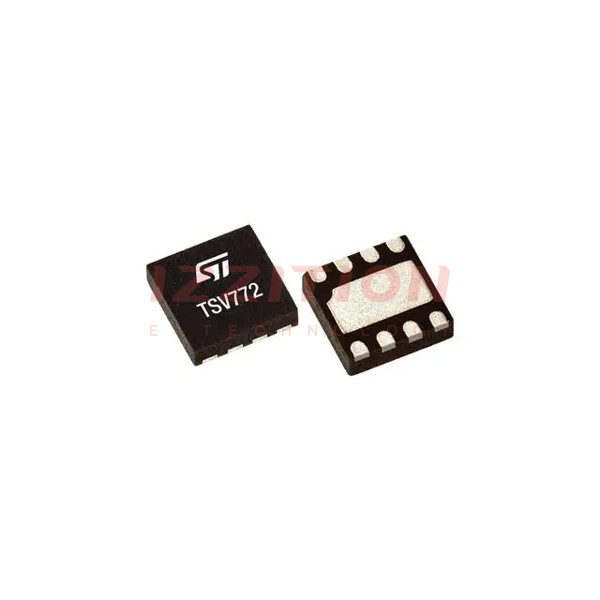

The TSV772IQ2T is a dual operational amplifier produced by STMicroelectronics. It is part of the TSV771, TSV772, and TSV774 family, which includes single, dual, and quad 20 MHz-bandwidth unity-gain-stable amplifiers. The TSV772IQ2T features a rail-to-rail input stage and a high slew rate, making it ideal for applications such as low-side current measurement and high-frequency signal conditioning. It operates from a single supply voltage ranging from 2.0 V to 5.5 V and is fully characterized for use with an output capacitor of 47 pF, facilitating its use as an input buffer for A/D converters.
Key Specifications
| Parameter | Conditions | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| Gain Bandwidth Product (GBP) | - | 17 | 20 | - | MHz |
| Input Offset Voltage (Vio) | T = 25 °C | - | 50 µV | 200 µV | µV |
| Input Bias Current (Iib) | T = 25 °C | - | 2 pA | 2 pA | pA |
| Input Noise Voltage Density | f = 1 kHz | - | 13 nV/√Hz | - | nV/√Hz |
| Slew Rate (SR) | AV = 1 V/V, 10% to 90% | 11 | 13 | - | V/µs |
| Supply Voltage Range | - | 2.0 V | - | 5.5 V | V |
| Operating Temperature Range | - | -40 °C | - | 125 °C | °C |
| Package | - | QFN-8L P 0.5 mm | - | - | - |
| Grade | - | Industrial | - | - | - |
Key Features
- Gain bandwidth product of 20 MHz, unity gain stable
- Low input offset voltage: 50 µV typical, 200 µV maximum
- Low input bias current: 2 pA maximum
- Low noise: 7 nV/√Hz at 10 kHz
- High slew rate: 13 V/µs
- Rail-to-rail input and output
- Wide supply voltage range: 2.0 V to 5.5 V
- 4 kV HBM ESD tolerance
- Extended temperature range: -40 °C to +125 °C
- Automotive grade versions available
Applications
- High bandwidth low-side and high-side current sensing
- Photodiode amplifiers
- A/D converters input buffers
- Power management in solar powered systems
- Automotive high bandwidth signal conditioning
- Active filters
Q & A
- What is the gain bandwidth product of the TSV772IQ2T?
The gain bandwidth product of the TSV772IQ2T is 20 MHz.
- What is the typical input offset voltage of the TSV772IQ2T?
The typical input offset voltage is 50 µV.
- What is the maximum input bias current of the TSV772IQ2T?
The maximum input bias current is 2 pA.
- What is the slew rate of the TSV772IQ2T?
The slew rate is 13 V/µs.
- What is the operating temperature range of the TSV772IQ2T?
The operating temperature range is -40 °C to +125 °C.
- What are the package options for the TSV772IQ2T?
The TSV772IQ2T is available in a QFN-8L P 0.5 mm package.
- Is the TSV772IQ2T suitable for automotive applications?
Yes, automotive grade versions of the TSV772IQ2T are available.
- What is the supply voltage range for the TSV772IQ2T?
The supply voltage range is 2.0 V to 5.5 V.
- Does the TSV772IQ2T have rail-to-rail input and output capabilities?
Yes, it has rail-to-rail input and output capabilities.
- What is the ESD tolerance of the TSV772IQ2T?
The TSV772IQ2T has a 4 kV HBM ESD tolerance.
