Overview
The TSH24IDT is a quad bipolar operational amplifier manufactured by STMicroelectronics. This device is designed for single supply operation, ranging from 3V to 30V, and offers excellent performance characteristics. It is particularly noted for its medium speed, unity gain stability, and low noise, making it a versatile component for various electronic applications.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 4 |
| Supply Voltage Range | 3V to 30V |
| Bandwidth | 25 MHz |
| Slew Rate | 15 V/µs |

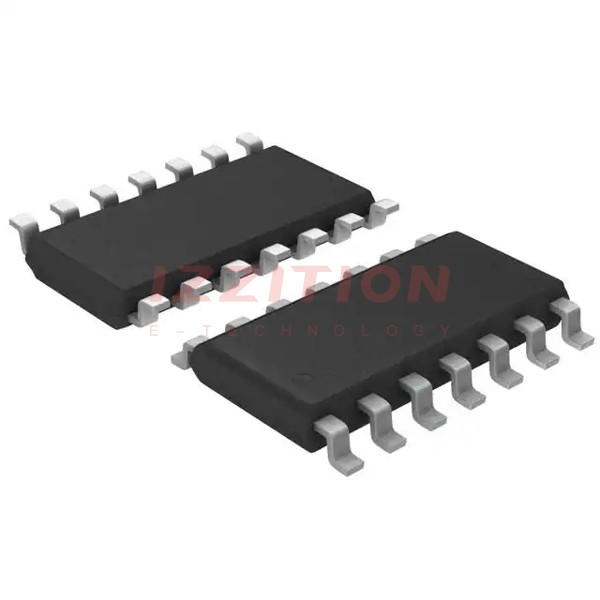

| Package Type | SOIC, 14 Pins |
Key Features
- Single supply operation from 3V to 30V
- Medium speed with a bandwidth of 25 MHz
- Unity gain stability
- Low noise performance
- Quad channel configuration for multiple signal processing
Applications
The TSH24IDT is suitable for a wide range of applications, including general-purpose amplification, audio circuits, medical devices, industrial control systems, and any scenario requiring multiple operational amplifiers with good performance and stability.
Q & A
- What is the supply voltage range of the TSH24IDT? The supply voltage range is from 3V to 30V.
- How many channels does the TSH24IDT have? It has 4 channels.
- What is the bandwidth of the TSH24IDT? The bandwidth is 25 MHz.
- What is the slew rate of the TSH24IDT? The slew rate is 15 V/µs.
- In what package type is the TSH24IDT available? It is available in a 14-pin SOIC package.
- Why is the TSH24IDT considered versatile? It is considered versatile due to its single supply operation, medium speed, unity gain stability, and low noise performance.
- What are some common applications of the TSH24IDT? Common applications include general-purpose amplification, audio circuits, medical devices, and industrial control systems.
- Who manufactures the TSH24IDT? The TSH24IDT is manufactured by STMicroelectronics.
- Where can I purchase the TSH24IDT? You can purchase it from various electronic component distributors such as Digi-Key, Farnell, and other authorized suppliers.
- What are the key performance characteristics of the TSH24IDT? Key performance characteristics include medium speed, unity gain stability, and low noise.
