Overview

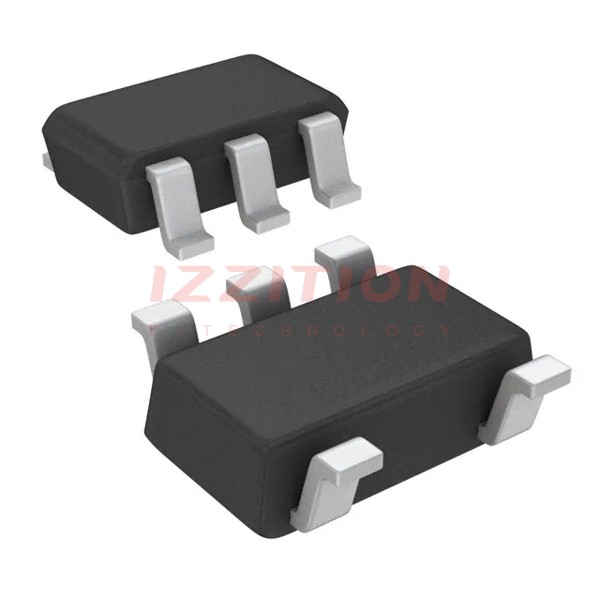

The TSC101CILT, produced by STMicroelectronics, is a high-side current sense amplifier designed to measure a small differential voltage on a high-side shunt resistor and translate it into a ground-referenced output voltage. The gain of the amplifier is internally fixed, available in three different gain options: 20 V/V, 50 V/V, and 100 V/V. This component is notable for its wide input common-mode voltage range, low quiescent current, and compact SOT23 packaging, making it suitable for a variety of applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| DC Supply Voltage (VCC) | 4.0 to 24 | V |
| Common Mode Voltage Range (Vicm) | 2.8 to 30 | V |
| Common Mode Surviving Range | -0.3 to 60 | V (load-dump) |
| Total Supply Current (ICC) | ≤ 300 | μA |
| Gain (Av) | 20, 50, 100 | V/V |
| Operational Temperature Range (Toper) | -40 to 125 | °C |
| Input Offset Drift vs. T | -3 μV/°C | |
| Output Voltage Drift vs. T | 0.4 mV/°C | |
| Output Stage Load Regulation | 3-4 mV/mA |
Key Features
- Independent supply and input common-mode voltages
- Wide common-mode operating range: 2.8 to 30 V
- Wide common-mode surviving range: -0.3 to 60 V (load-dump)
- Wide supply voltage range: 4 to 24 V
- Low current consumption: ICC max = 300 μA
- Internally fixed gain: 20 V/V, 50 V/V, or 100 V/V
- Buffered output
Applications
- Automotive current monitoring
- Notebook computers
- DC motor controls
- Photovoltaic systems
- Battery chargers
- Precision current sources
Q & A
- What is the primary function of the TSC101CILT?
The TSC101CILT measures a small differential voltage on a high-side shunt resistor and translates it into a ground-referenced output voltage.
- What are the available gain options for the TSC101CILT?
The gain options are 20 V/V, 50 V/V, and 100 V/V.
- What is the operating temperature range of the TSC101CILT?
The operational temperature range is -40°C to 125°C.
- What is the maximum supply current consumption of the TSC101CILT?
The maximum supply current consumption is 300 μA.
- What is the common-mode voltage range of the TSC101CILT?
The common-mode voltage range is 2.8 to 30 V.
- What are some typical applications of the TSC101CILT?
Typical applications include automotive current monitoring, notebook computers, DC motor controls, photovoltaic systems, battery chargers, and precision current sources.
- What is the package type of the TSC101CILT?
The package type is SOT23-5.
- How does the TSC101CILT handle load-dump conditions?
The TSC101CILT can survive common-mode voltages up to 60 V during load-dump conditions.
- What is the output stage load regulation of the TSC101CILT?
The output stage load regulation is 3-4 mV/mA.
- How does the TSC101CILT ensure stability with different load capacitors?
For stability purposes, it is recommended not to use a greater value of load capacitor than 47 pF.
