Overview
The TSC101BILT, produced by STMicroelectronics, is a high-side current sense amplifier designed to measure a small differential voltage on a high-side shunt resistor and translate it into a ground-referenced output voltage. The gain of the amplifier is internally fixed, available in three different gain options: 20 V/V, 50 V/V, and 100 V/V. This component is notable for its wide input common-mode voltage range, low quiescent current, and compact SOT23 packaging, making it suitable for a variety of applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| DC Supply Voltage (VCC) | 4.0 to 24 | V |
| Common Mode Voltage Range (Vicm) | 2.8 to 30 | V |
| Common Mode Surviving Range | -0.3 to 60 | V (load-dump) |
| Total Supply Current (ICC) | ≤ 300 | μA |
| Internally Fixed Gain | 20 V/V, 50 V/V, 100 V/V | |
| Operational Temperature Range (Toper) | -40 to 125 | °C |
| Output Voltage Accuracy | ±2.5% to ±4.5% | |
| Output Voltage Drift vs. Temperature | 0.4 mV/°C | |
| 3dB Bandwidth | 450 kHz to 670 kHz |
Key Features
- Independent supply and input common-mode voltages
- Wide common-mode operating range: 2.8 to 30 V
- Wide common-mode surviving range: -0.3 to 60 V (load-dump)
- Wide supply voltage range: 4 to 24 V
- Low current consumption: ICC max = 300 μA
- Internally fixed gain: 20 V/V, 50 V/V or 100 V/V
- Buffered output
Applications
- Automotive current monitoring
- Notebook computers
- DC motor controls
- Photovoltaic systems
- Battery chargers
- Precision current sources
Q & A
- What is the primary function of the TSC101BILT?
The TSC101BILT measures a small differential voltage on a high-side shunt resistor and translates it into a ground-referenced output voltage. - What are the available gain options for the TSC101BILT?
The gain options are 20 V/V, 50 V/V, and 100 V/V. - What is the common-mode voltage range of the TSC101BILT?
The common-mode voltage range is from 2.8 to 30 V. - What is the maximum supply current consumption of the TSC101BILT?
The maximum supply current consumption is 300 μA. - What is the operational temperature range of the TSC101BILT?
The operational temperature range is from -40°C to 125°C. - What are some typical applications of the TSC101BILT?
Typical applications include automotive current monitoring, notebook computers, DC motor controls, photovoltaic systems, battery chargers, and precision current sources. - What is the package type of the TSC101BILT?

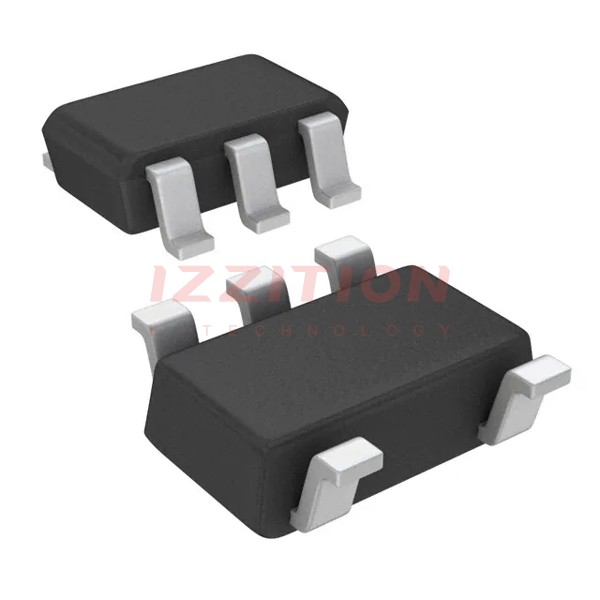

The package type is SOT23-5. - How does the TSC101BILT handle high common-mode voltages?
The TSC101BILT can handle common-mode voltages up to 60 V in load-dump conditions. - What is the output voltage accuracy of the TSC101BILT?
The output voltage accuracy is ±2.5% to ±4.5%. - How does the TSC101BILT perform in terms of bandwidth?
The 3dB bandwidth ranges from 450 kHz to 670 kHz.
