Overview
The TSC101AILT, produced by STMicroelectronics, is a high-side current sense amplifier designed to measure small differential voltages on a high-side shunt resistor and translate them into a ground-referenced output voltage. This amplifier features an internally fixed gain and is packaged in a compact SOT23-5L package. The device is suitable for a wide range of applications due to its wide input common-mode voltage range, low quiescent current, and independent supply and input common-mode voltages.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Supply Voltage Range | 4 to 24 | V |
| Common Mode Operating Range | 2.8 to 30 | V |
| Common Mode Surviving Range | -0.3 to 60 | V |
| Internally Fixed Gain | 20 V/V, 50 V/V, 100 V/V | V/V |
| Maximum Quiescent Current | 300 μA | μA |
| Operating Temperature Range | -40 to 125 | °C |

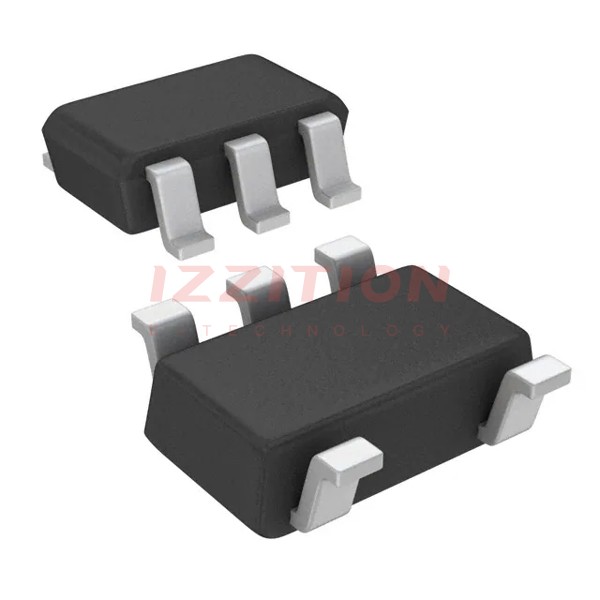

| Package Type | SOT23-5L | |
| RoHS Compliance | Ecopack2 |
Key Features
- Independent supply and input common-mode voltages
- Wide common-mode operating range: 2.8 to 30 V
- Wide common-mode surviving range: -0.3 to 60 V (load-dump)
- Wide supply voltage range: 4 to 24 V
- Low current consumption: ICC max = 300 μA
- Internally fixed gain: 20 V/V, 50 V/V, or 100 V/V
- Buffered output
Applications
- Automotive current monitoring
- Notebook computers
- DC motor controls
- Photovoltaic systems
- Battery chargers
- Precision current sources
Q & A
- What is the primary function of the TSC101AILT?
The TSC101AILT measures a small differential voltage on a high-side shunt resistor and translates it into a ground-referenced output voltage.
- What is the range of the supply voltage for the TSC101AILT?
The supply voltage range is from 4 to 24 V.
- What are the common-mode operating and surviving voltage ranges for the TSC101AILT?
The common-mode operating range is from 2.8 to 30 V, and the surviving range is from -0.3 to 60 V.
- What are the available gain options for the TSC101AILT?
The gain is internally fixed at 20 V/V, 50 V/V, or 100 V/V.
- What is the maximum quiescent current of the TSC101AILT?
The maximum quiescent current is 300 μA.
- What is the operating temperature range for the TSC101AILT?
The operating temperature range is from -40 to 125 °C.
- In what package is the TSC101AILT available?
The TSC101AILT is available in a SOT23-5L package.
- Is the TSC101AILT RoHS compliant?
- What are some typical applications of the TSC101AILT?
Typical applications include automotive current monitoring, notebook computers, DC motor controls, photovoltaic systems, battery chargers, and precision current sources.
- How does the TSC101AILT handle high-side current sensing?
The TSC101AILT allows high-side current sensing at voltages much greater than the supply voltage due to its independent supply and input common-mode voltages.
