Overview

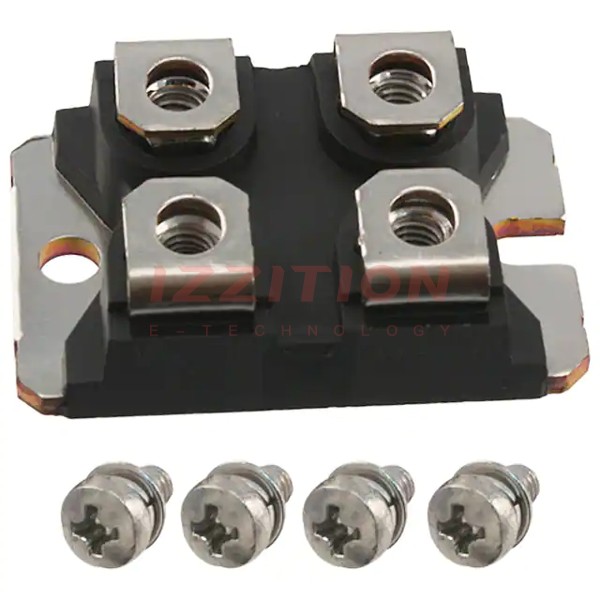

The STTH200L06TV1 is a high-performance rectifier diode produced by STMicroelectronics. This device utilizes ST's Turbo 2 600 V technology, making it particularly suitable for applications in switching power supplies and industrial environments. The dual isolated configuration and ultra-fast recovery characteristics of this diode ensure efficient and reliable operation in demanding conditions.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Ultra Fast Recovery Rectifiers |
| Configuration | Dual Parallel |
| Vf - Forward Voltage | 1.2 V |
| Maximum Voltage (VRRM) | 600 V |
| Maximum Average Forward Current (IF(AV)) | 240 A |
| Maximum Surge Current (IFSM) | 800 A (tp = 10 ms, Sinusoidal) |
| Operating Temperature Range | -40°C to 150°C |
| RoHS Compliance | Yes |
Key Features
- Ultra-fast recovery time, reducing switching losses and improving efficiency.
- Dual isolated configuration, enhancing reliability and reducing thermal stress.
- High maximum voltage rating of 600 V, suitable for high-voltage applications.
- High maximum average forward current of 240 A, supporting high-power requirements.
- Low forward voltage drop of 1.2 V, minimizing energy losses.
- Compliant with RoHS standards, ensuring environmental sustainability.
Applications
The STTH200L06TV1 is designed for use in various high-power and high-voltage applications, including:
- Switching power supplies, such as SMPS and DC-DC converters.
- Industrial power supplies and motor drives.
- High-frequency inverters and converters.
- Renewable energy systems, such as solar and wind power inverters.
Q & A
- What is the maximum voltage rating of the STTH200L06TV1?
The maximum voltage rating is 600 V. - What is the maximum average forward current of the STTH200L06TV1?
The maximum average forward current is 240 A. - What is the forward voltage drop of the STTH200L06TV1?
The forward voltage drop is 1.2 V. - Is the STTH200L06TV1 RoHS compliant?
Yes, the STTH200L06TV1 is RoHS compliant. - What is the configuration of the STTH200L06TV1?
The configuration is dual parallel. - What are the typical applications of the STTH200L06TV1?
Typical applications include switching power supplies, industrial power supplies, high-frequency inverters, and renewable energy systems. - What technology does the STTH200L06TV1 use?
The STTH200L06TV1 uses ST's Turbo 2 600 V technology. - What is the maximum surge current of the STTH200L06TV1?
The maximum surge current is 800 A (tp = 10 ms, Sinusoidal). - What is the operating temperature range of the STTH200L06TV1?
The operating temperature range is -40°C to 150°C. - Why is the STTH200L06TV1 considered ultra-fast recovery?
The STTH200L06TV1 is considered ultra-fast recovery due to its reduced switching losses and improved efficiency.
