Overview
The STTH1512GY-TR is a high-performance single-phase diode rectifier produced by STMicroelectronics. This component is designed to offer improved performance in low leakage current and thermal runaway guard band, making it an excellent choice for various applications, particularly in the automotive sector. The diode features a robust design with high junction temperature capability and ultra-fast recovery characteristics, ensuring reliable operation in demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage | 1.2 kV |
| Diode Configuration | Single |
| Average Forward Current | 15 A |
| Reverse Recovery Time | 105 ns |
| Operating Temperature Max | 175°C |

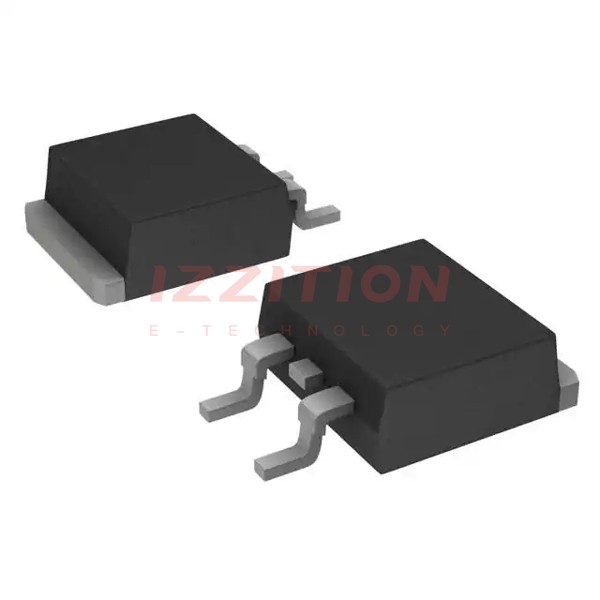

| Package Type | TO-263 |
Key Features
- High junction temperature capability
- Ultra-fast recovery mode with soft recovery behavior
- Low leakage current and improved thermal runaway guard band
- Robust design suitable for automotive and other high-reliability applications
Applications
The STTH1512GY-TR is primarily used in automotive applications due to its high reliability and performance. It is also suitable for other high-reliability sectors such as industrial power supplies, renewable energy systems, and general-purpose rectification in high-power applications.
Q & A
- What is the repetitive peak reverse voltage of the STTH1512GY-TR?
The repetitive peak reverse voltage is 1.2 kV. - What is the maximum operating temperature of the STTH1512GY-TR?
The maximum operating temperature is 175°C. - What is the average forward current rating of the STTH1512GY-TR?
The average forward current rating is 15 A. - What is the reverse recovery time of the STTH1512GY-TR?
The reverse recovery time is 105 ns. - In what package type is the STTH1512GY-TR available?
The STTH1512GY-TR is available in the TO-263 package type. - What are the key features of the STTH1512GY-TR?
The key features include high junction temperature capability, ultra-fast recovery mode with soft recovery behavior, and low leakage current. - Where is the STTH1512GY-TR primarily used?
The STTH1512GY-TR is primarily used in automotive applications. - Is the STTH1512GY-TR suitable for high-reliability applications?
Yes, the STTH1512GY-TR is designed for high-reliability applications. - What other sectors can the STTH1512GY-TR be used in besides automotive?
Besides automotive, it can be used in industrial power supplies, renewable energy systems, and general-purpose rectification in high-power applications. - Who is the manufacturer of the STTH1512GY-TR?
The manufacturer is STMicroelectronics.
