STPSC40065CW
  • Share:

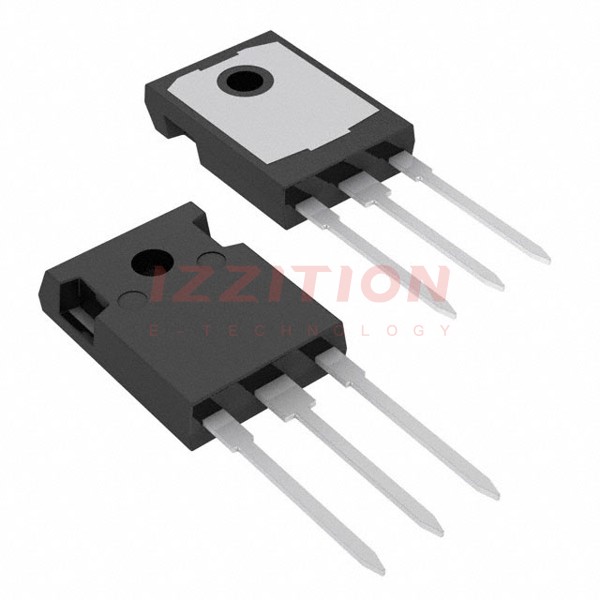

STMicroelectronics STPSC40065CW

Manufacturer No:
STPSC40065CW
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
DIODE SCHOTTKY 650V TO-247
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STPSC40065CW is a high-performance power Schottky silicon-carbide diode manufactured by STMicroelectronics. This diode is designed for use in freewheeling or output rectification applications, enhancing the performance and form factor of power supplies and inverters. The silicon-carbide material allows for a 650 V rating, making it suitable for demanding power management tasks.

Key Specifications

ParameterValue
Voltage Rating (V)650 V
Current Rating (A)20 A
Package TypeTO-247-3
Configuration1 Pair Common Cathode
MaterialSilicon-Carbide

Key Features

  • High voltage rating of 650 V, suitable for high-power applications.
  • High current rating of 20 A, ensuring robust performance.
  • Silicon-carbide material for enhanced efficiency and reliability.
  • TO-247-3 package, providing a compact form factor.
  • Common cathode configuration for easy integration in various circuits.

Applications

The STPSC40065CW is ideal for use in power supplies, inverters, and other high-power electronic systems. It is particularly suited for applications requiring high efficiency, low losses, and robust performance, such as in renewable energy systems, industrial power supplies, and automotive electronics.

Q & A

  1. What is the voltage rating of the STPSC40065CW? The voltage rating is 650 V.
  2. What is the current rating of the STPSC40065CW? The current rating is 20 A.
  3. What package type does the STPSC40065CW use? It uses the TO-247-3 package.
  4. What material is the STPSC40065CW made of? It is made of silicon-carbide.
  5. What configuration does the STPSC40065CW have? It has a 1 pair common cathode configuration.
  6. Where can the STPSC40065CW be used? It can be used in power supplies, inverters, and other high-power electronic systems.
  7. Why is silicon-carbide used in the STPSC40065CW? Silicon-carbide is used for its high efficiency and reliability in high-power applications.
  8. What are the benefits of using the STPSC40065CW in power supplies? It enhances performance, reduces losses, and improves the form factor of the power supply.
  9. Is the STPSC40065CW suitable for automotive applications? Yes, it is suitable for automotive electronics due to its robust performance and high reliability.
  10. Where can I purchase the STPSC40065CW? It can be purchased from various electronic component distributors such as Digi-Key, Mouser, and RS Components.

Product Attributes

Diode Configuration:1 Pair Common Cathode
Diode Type:Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max):650 V
Current - Average Rectified (Io) (per Diode):20A
Voltage - Forward (Vf) (Max) @ If:1.7 V @ 20 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:300 µA @ 600 V
Operating Temperature - Junction:-40°C ~ 175°C
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247-3
0 Remaining View Similar

In Stock

$13.34
47

Please send RFQ , we will respond immediately.
