Overview

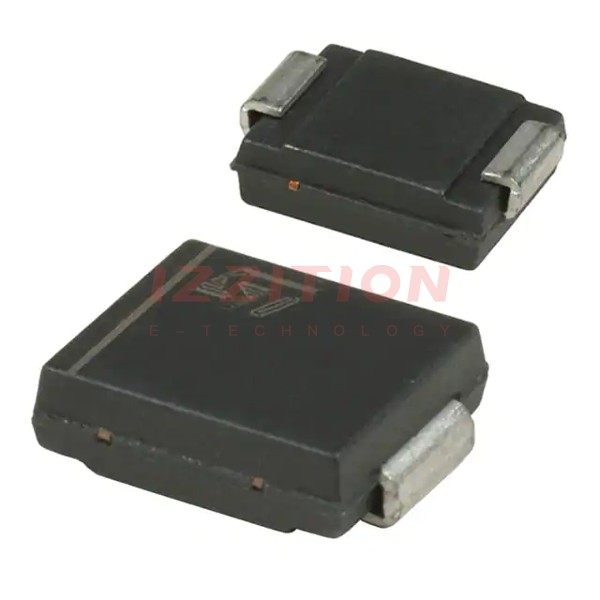

The STPS3L25S is a low drop power Schottky rectifier produced by STMicroelectronics. It is specifically designed for use in Switched Mode Power Supplies (SMPS) and high frequency DC to DC converters. This component is known for its high efficiency and reliability in power conversion applications.
Key Specifications
| Parameter | Value |
|---|---|
| Maximum Average Rectified Current | 3.0 A |
| Maximum Reverse Voltage | 25 V |
| Forward Voltage Drop | Low drop |
| Package Type | SMC (Surface Mount Component) |
| Weight | 0.243 g |
| Base Quantity | 2500 (per reel) |
Key Features
- Low forward voltage drop, enhancing efficiency in power conversion.
- High current capability, suitable for demanding applications.
- Surface mount package (SMC) for easy integration into modern PCB designs.
- High reliability and durability, meeting UL94, V0 epoxy standards.
- Suitable for high frequency operations, making it ideal for DC to DC converters and SMPS.
Applications
The STPS3L25S is primarily used in:
- Switched Mode Power Supplies (SMPS).
- High frequency DC to DC converters.
- Other power conversion and rectification applications where high efficiency and reliability are crucial.
Q & A
- What is the maximum average rectified current of the STPS3L25S?
The maximum average rectified current is 3.0 A. - What is the maximum reverse voltage of the STPS3L25S?
The maximum reverse voltage is 25 V. - What type of package does the STPS3L25S come in?
The STPS3L25S comes in an SMC (Surface Mount Component) package. - What is the weight of a single STPS3L25S component?
The weight of a single STPS3L25S component is 0.243 g. - What is the base quantity of STPS3L25S components per reel?
The base quantity is 2500 components per reel. - Is the epoxy used in the STPS3L25S compliant with any specific standards?
Yes, the epoxy meets UL94, V0 standards. - What are the primary applications of the STPS3L25S?
The primary applications include Switched Mode Power Supplies (SMPS) and high frequency DC to DC converters. - Why is the STPS3L25S suitable for high frequency operations?
The STPS3L25S is suitable due to its low forward voltage drop and high current capability. - What are the key benefits of using the STPS3L25S in power conversion applications?
The key benefits include high efficiency, reliability, and suitability for high frequency operations. - Where can I purchase the STPS3L25S?
The STPS3L25S can be purchased from various electronic component distributors such as Digi-Key, Mouser, and SOS electronic.
