Overview

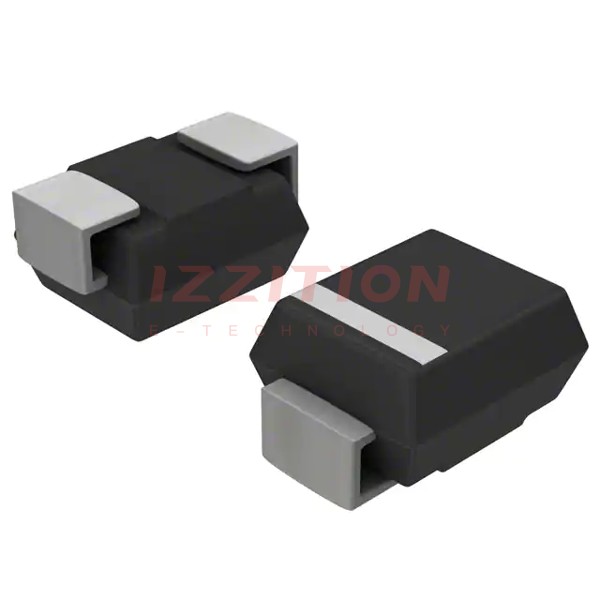

The STPR120A is a high-efficiency fast recovery diode produced by STMicroelectronics. Although it is currently obsolete and no longer manufactured, it was designed for applications requiring fast recovery times and high efficiency. This diode was particularly suited for use in power supply circuits, switching applications, and other high-frequency operations.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Fast Recovery Rectifiers |
| Configuration | Single |
| Vf - Forward Voltage | 940 mV |
| Max Surge Current | 30 A |
| Ir - Reverse Current | 3 uA |
| Recovery Time | 35 ns |
Key Features
- High efficiency due to low forward voltage drop (Vf = 940 mV)
- Fast recovery time (trr = 35 ns), making it suitable for high-frequency applications
- High surge current capability (30 A), enhancing reliability in transient conditions
- Low reverse current (Ir = 3 uA), reducing leakage and improving overall efficiency
Applications
- Power supply circuits, especially in switching power supplies and DC-DC converters
- High-frequency switching applications, such as inverter circuits and motor drives
- Rectification in power electronic systems, including PoE (Power over Ethernet) devices
- General-purpose rectification in industrial and consumer electronics
Q & A
- What is the STPR120A diode used for?
The STPR120A is used in high-efficiency fast recovery applications, particularly in power supply circuits, switching applications, and other high-frequency operations.
- What are the key specifications of the STPR120A diode?
The key specifications include a forward voltage of 940 mV, a maximum surge current of 30 A, a reverse current of 3 uA, and a recovery time of 35 ns.
- Is the STPR120A diode still in production?
No, the STPR120A is obsolete and no longer manufactured by STMicroelectronics.
- What are some common applications for the STPR120A diode?
Common applications include power supply circuits, high-frequency switching applications, and rectification in power electronic systems.
- What are the benefits of using a fast recovery diode like the STPR120A?
The benefits include high efficiency, fast recovery times, and the ability to handle high surge currents, making it suitable for high-frequency and high-power applications.
- How does the STPR120A compare to other diodes in terms of recovery time?
The STPR120A has a recovery time of 35 ns, which is significantly faster than many standard rectifier diodes, making it more suitable for high-frequency applications.
- What is the maximum forward current rating of the STPR120A diode?
The maximum surge current rating is 30 A, but continuous current ratings should be checked in the detailed datasheet.
- Can the STPR120A be used in PoE applications?
Yes, the STPR120A can be used in PoE applications due to its fast recovery and high efficiency characteristics, which are beneficial in such systems.
- How should I replace the STPR120A if it is no longer available?
You should consult the manufacturer's recommendations for direct substitutes or alternatives that match the specifications and performance of the STPR120A.
- What are the thermal considerations for using the STPR120A diode?
Proper thermal management is crucial. Ensure good heat dissipation by following layout guidelines and using adequate thermal interfaces to prevent overheating.
