Overview

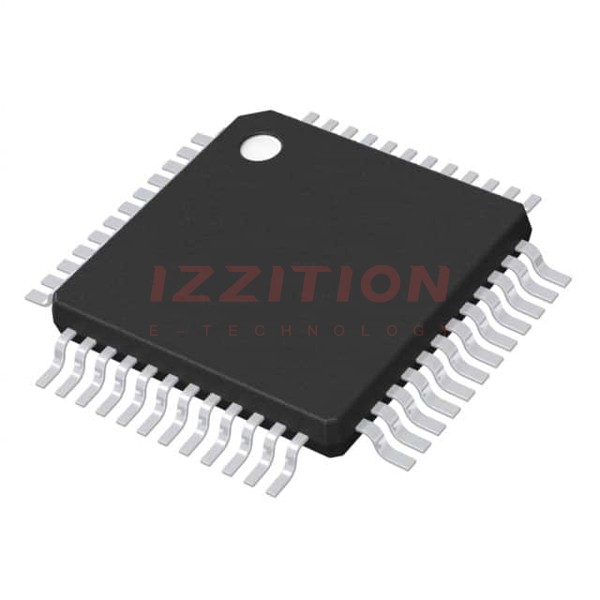

The STM8AL3168TCY is a medium-density, ultra-low-power 8-bit microcontroller from STMicroelectronics. It features the enhanced STM8 CPU core, which provides increased processing power of up to 16 MIPS at 16 MHz. This microcontroller maintains the advantages of a CISC architecture, including improved code density, a 24-bit linear addressing space, and an optimized architecture for low power operations.
Key Specifications
| Specification | Value |
|---|---|
| Processor Core | STM8 CPU core |
| Processing Power | Up to 16 MIPS at 16 MHz |
| Flash Memory | 32 Kbytes |
| Package Type | 48LQFP |
| Debug Interface | SWIM (Single-Wire Interface Module) |
| EEPROM | Integrated |
| Addressing Space | 24-bit linear addressing space |
Key Features
- Ultra-low power consumption, making it suitable for battery-powered applications.
- Integrated debug module with SWIM interface for non-intrusive In-Application debugging and ultrafast Flash programming.
- Enhanced STM8 CPU core with improved processing power and code density.
- 24-bit linear addressing space for expanded memory access.
- Optimized architecture for low power operations.
Applications
The STM8AL3168TCY is designed for various applications, particularly in the automotive sector, due to its ultra-low power consumption and robust features. It is suitable for use in battery-powered devices, automotive control systems, and other low-power embedded systems.
Q & A
- What is the processing power of the STM8AL3168TCY? The STM8AL3168TCY has a processing power of up to 16 MIPS at 16 MHz.
- How much Flash memory does the STM8AL3168TCY have? The STM8AL3168TCY has 32 Kbytes of Flash memory.
- What is the package type of the STM8AL3168TCY? The package type is 48LQFP.
- Does the STM8AL3168TCY have an integrated debug module? Yes, it includes an integrated debug module with a SWIM interface.
- What is the addressing space of the STM8AL3168TCY? The addressing space is 24-bit linear.
- Is the STM8AL3168TCY suitable for automotive applications? Yes, it is designed for automotive and other low-power applications.
- What is the CPU core of the STM8AL3168TCY? The CPU core is the enhanced STM8 CPU core.
- Does the STM8AL3168TCY have integrated EEPROM? Yes, it has integrated EEPROM.
- What are the key advantages of the STM8AL3168TCY's architecture? The architecture provides improved code density and is optimized for low power operations.
- How does the SWIM interface benefit the STM8AL3168TCY? The SWIM interface allows for non-intrusive In-Application debugging and ultrafast Flash programming.
