Overview
The STM32H757ZIY6TR is a high-performance microcontroller from STMicroelectronics, based on the Arm® Cortex®-M7 and Cortex®-M4 32-bit RISC cores. The Cortex®-M7 core operates at up to 480 MHz, while the Cortex®-M4 core operates at up to 240 MHz. Both cores feature floating point units (FPUs) supporting single- and double-precision operations, as well as a full set of DSP instructions and a memory protection unit (MPU) for enhanced application security.
This microcontroller incorporates 2 Mbytes of flash memory with read-while-write support, 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, 864 Kbytes of user SRAM, and 4 Kbytes of backup SRAM), and a wide range of enhanced I/Os and peripherals connected to APB, AHB, and AXI buses.
Key Specifications
| Parameter | Description |
|---|---|
| Manufacturer | STMicroelectronics |
| Part Number | STM32H757ZIY6TR |

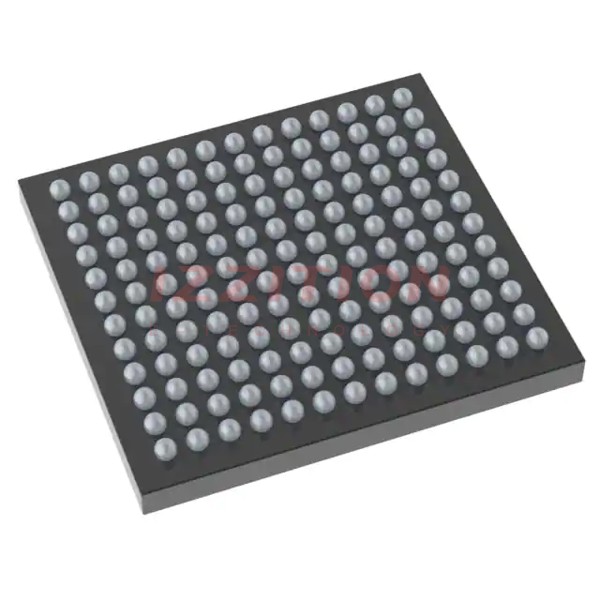

| Package | WLCSP-156 (4.6x5) |
| CPU Core | Arm® Cortex®-M7 and Arm® Cortex®-M4 |
| CPU Maximum Speed | Cortex®-M7: up to 480 MHz, Cortex®-M4: up to 240 MHz |
| Flash Memory | 2 Mbytes with read-while-write support |
| RAM | 1 Mbyte (192 Kbytes of TCM RAM, 864 Kbytes of user SRAM, 4 Kbytes of backup SRAM) |
| External Memory Interface | Dual mode Quad-SPI, SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND flash |
| Power Supply | 1.62 to 3.6 V |
| Operating Temperature | -40°C to 125°C |
| Communication Interfaces | USART/UART, SPI, I2C, CAN, USB OTG, Ethernet MAC, HDMI-CEC |
| Analog Peripherals | 3 ADCs, 2 DACs, 2 ultra-low power comparators, 2 operational amplifiers |
Key Features
- Dual-core architecture with Arm® Cortex®-M7 and Arm® Cortex®-M4 cores, each with an FPU and DSP instructions.
- High-speed embedded memories including 2 Mbytes of flash and 1 Mbyte of RAM.
- Dual-bank flash memory with read-while-write support.
- Extensive range of enhanced I/Os and peripherals connected to APB, AHB, and AXI buses.
- Advanced communication interfaces such as USB OTG, Ethernet MAC, and HDMI-CEC.
- Security features including ROP, PC-ROP, active tamper, secure firmware upgrade support, and secure access mode.
- Power management with 3 separate power domains and a high power-efficiency SMPS step-down converter regulator.
- Low power consumption with 2.95 µA in Standby mode.
- Support for external memory interfaces and a wide range of analog peripherals.
Applications
- Industrial automation and control systems.
- Medical devices requiring high performance and low power consumption.
- Automotive systems, including advanced driver-assistance systems (ADAS) and infotainment.
- Consumer electronics such as smart home devices and wearables.
- IoT devices requiring robust security and communication capabilities.
- High-performance computing in embedded systems.
Q & A
- What are the core frequencies of the STM32H757ZIY6TR?
The Cortex®-M7 core operates at up to 480 MHz, and the Cortex®-M4 core operates at up to 240 MHz.
- How much flash and RAM does the STM32H757ZIY6TR have?
The device has 2 Mbytes of flash memory and 1 Mbyte of RAM.
- What types of communication interfaces are available on the STM32H757ZIY6TR?
The device features USART/UART, SPI, I2C, CAN, USB OTG, Ethernet MAC, and HDMI-CEC interfaces.
- What are the key security features of the STM32H757ZIY6TR?
The device includes ROP, PC-ROP, active tamper, secure firmware upgrade support, and secure access mode.
- What is the power supply range for the STM32H757ZIY6TR?
The device operates within a power supply range of 1.62 to 3.6 V.
- What is the operating temperature range for the STM32H757ZIY6TR?
The device operates within a temperature range of -40°C to 125°C.
- Does the STM32H757ZIY6TR support external memory interfaces?
Yes, it supports dual mode Quad-SPI, SRAM, PSRAM, SDRAM/LPSDR SDRAM, and NOR/NAND flash memory interfaces.
- What are the analog peripherals available on the STM32H757ZIY6TR?
The device features 3 ADCs, 2 DACs, 2 ultra-low power comparators, and 2 operational amplifiers.
- How does the power management system of the STM32H757ZIY6TR work?
The device has 3 separate power domains that can be independently clock-gated or switched off, and it includes a high power-efficiency SMPS step-down converter regulator.
- What is the typical power consumption in Standby mode for the STM32H757ZIY6TR?
The device consumes 2.95 µA in Standby mode with Backup SRAM OFF and RTC/LSE ON.
