Overview

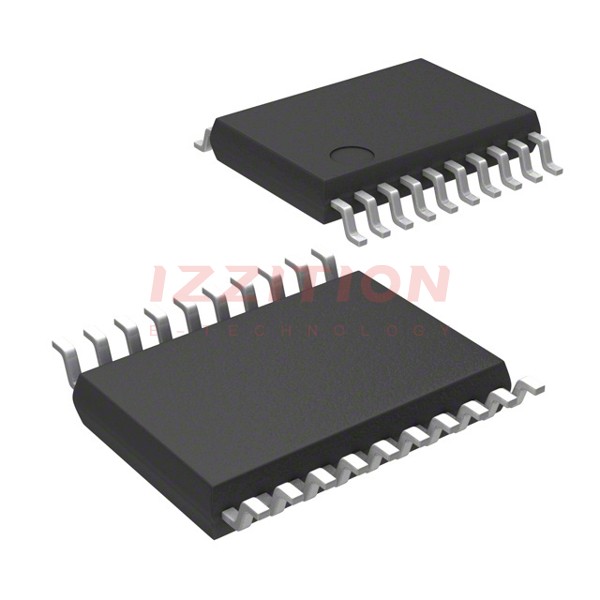

The STM32F070F6P6TR is a mainstream Arm Cortex-M0 Value line microcontroller (MCU) produced by STMicroelectronics. It incorporates the high-performance Arm® 32-bit Cortex®-M0 CPU, operating at a frequency of up to 48 MHz. This MCU features high-speed embedded memories, including up to 128 Kbytes of flash memory and up to 16 Kbytes of SRAM, along with an extensive range of enhanced peripherals and I/Os. The device is suitable for a wide range of applications due to its comprehensive set of communication interfaces, power-saving modes, and robust peripheral set.
Key Specifications
| Parameter | Value |
|---|---|
| Core | Arm® 32-bit Cortex®-M0 CPU |
| Frequency | Up to 48 MHz |
| Flash Memory | Up to 128 Kbytes |
| SRAM | Up to 16 Kbytes with HW parity |
| Operating Voltage | 2.4 V to 3.6 V |
| Operating Temperature | -40°C to 85°C |
| Package | TSSOP20 |
| I/Os | Up to 51 fast I/Os, 15 high-current I/Os |
| Communication Interfaces | Up to two I²Cs, up to two SPIs, up to four USARTs, one USB Full speed device |
| ADC | One 12-bit ADC (up to 16 channels) |
| Timers | Seven general-purpose 16-bit timers, one 16-bit advanced-control timer |
| RTC | Calendar RTC with alarm and periodic wakeup from Stop/Standby |
Key Features
- Includes ST state-of-the-art patented technology
- High-performance Arm® 32-bit Cortex®-M0 CPU with up to 48 MHz frequency
- High-speed embedded memories: up to 128 Kbytes of flash memory and up to 16 Kbytes of SRAM
- Comprehensive set of communication interfaces: I²C, SPI, USART, USB Full speed device
- One 12-bit ADC with up to 16 channels
- Seven general-purpose 16-bit timers and one 16-bit advanced-control timer for six-channel PWM output
- Calendar RTC with alarm and periodic wakeup from Stop/Standby
- Low power modes: Sleep, Stop, Standby
- Power-on/Power down reset (POR/PDR)
- Up to 51 fast I/Os with 5V tolerant capability
Applications
- Application control and user interfaces
- Handheld equipment
- A/V receivers and digital TV
- PC peripherals
- Gaming and GPS platforms
- Industrial applications
- PLCs, inverters, printers, scanners
- Alarm systems, video intercoms, and HVACs
Q & A
- What is the core of the STM32F070F6P6TR MCU?
The core is the Arm® 32-bit Cortex®-M0 CPU.
- What is the maximum frequency of the STM32F070F6P6TR MCU?
The maximum frequency is up to 48 MHz.
- How much flash memory does the STM32F070F6P6TR MCU have?
The MCU has up to 128 Kbytes of flash memory.
- What is the operating voltage range of the STM32F070F6P6TR MCU?
The operating voltage range is from 2.4 V to 3.6 V.
- What are the communication interfaces available on the STM32F070F6P6TR MCU?
The MCU features up to two I²Cs, up to two SPIs, up to four USARTs, and one USB Full speed device.
- Does the STM32F070F6P6TR MCU have any power-saving modes?
Yes, it includes low power modes such as Sleep, Stop, and Standby.
- What type of ADC does the STM32F070F6P6TR MCU have?
The MCU has one 12-bit ADC with up to 16 channels.
- How many timers does the STM32F070F6P6TR MCU have?
The MCU has seven general-purpose 16-bit timers and one 16-bit advanced-control timer.
- What is the operating temperature range of the STM32F070F6P6TR MCU?
The operating temperature range is from -40°C to 85°C.
- In what package is the STM32F070F6P6TR MCU available?
The MCU is available in a TSSOP20 package.
