Overview

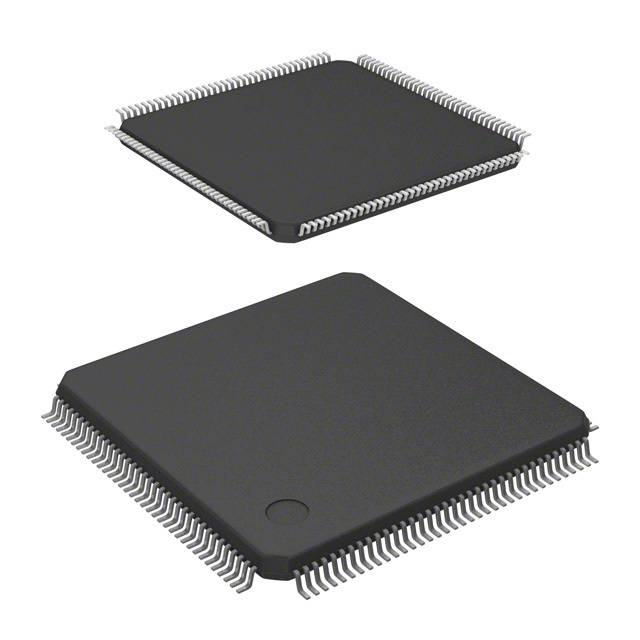

The ST10R167-Q3/TR is a 16-bit single-chip CMOS microcontroller from STMicroelectronics, part of the ST10 family. This microcontroller is known for its high CPU performance, reaching up to 12.5 MIPS at 25 MHz, and is designed for a wide range of applications requiring robust processing capabilities and efficient power management. The ST10R167-Q3/TR is ROMless, meaning it relies on external memory for program storage, and operates within a voltage range of 4.5 to 5.5V.
Key Specifications
| Parameter | Value |
|---|---|
| Bit Width | 16-bit |
| CPU Performance | Up to 12.5 MIPS at 25 MHz |
| Operating Voltage | 4.5 to 5.5V |
| Memory Type | ROMless (external memory required) |
| Package Type | Various packages available (e.g., TQFP64) |
Key Features
- High CPU performance up to 12.5 MIPS at 25 MHz
- ROMless architecture, requiring external memory for program storage
- Operating voltage range of 4.5 to 5.5V
- Advanced power management features
- Multiple peripheral interfaces and communication protocols
Applications
The ST10R167-Q3/TR microcontroller is suitable for various applications that require high processing power and efficient power management. These include industrial control systems, automotive electronics, medical devices, consumer electronics, and other embedded systems where robust and reliable performance is critical.
Q & A
- What is the bit width of the ST10R167-Q3/TR microcontroller?
The ST10R167-Q3/TR is a 16-bit microcontroller. - What is the maximum CPU performance of the ST10R167-Q3/TR?
The maximum CPU performance is up to 12.5 MIPS at 25 MHz. - What is the operating voltage range of the ST10R167-Q3/TR?
The operating voltage range is 4.5 to 5.5V. - Does the ST10R167-Q3/TR have internal ROM?
No, the ST10R167-Q3/TR is ROMless and requires external memory for program storage. - What are some typical applications for the ST10R167-Q3/TR?
Typical applications include industrial control systems, automotive electronics, medical devices, and consumer electronics. - What is the significance of the 'Q3' in the part number ST10R167-Q3/TR?
The 'Q3' typically indicates the specific variant or configuration of the microcontroller. - How does the ST10R167-Q3/TR manage power?
The ST10R167-Q3/TR features advanced power management capabilities to optimize power consumption. - What kind of packages are available for the ST10R167-Q3/TR?
The microcontroller is available in various packages, such as TQFP64. - Where can I find detailed specifications for the ST10R167-Q3/TR?
Detailed specifications can be found in the datasheet available from STMicroelectronics or through distributors like Mouser and Digi-Key. - Is the ST10R167-Q3/TR suitable for high-performance applications?
