Overview
The SMLVT3V3 is a Transil diode designed by STMicroelectronics to protect sensitive 3.3 V equipment against transient overvoltages. These diodes provide high overvoltage protection through their clamping action and are particularly suited for protecting voltage-sensitive devices such as those using MOS technology and low-voltage supplied ICs.
Key Specifications
| Parameter | Value |
|---|---|
| Peak Pulse Power | 600 W (10/1000 μs) |
| Stand-off Voltage | 3.3 V |
| Directionality | Unidirectional |
| Breakdown Voltage (Min) | 4.1 V |
| Clamping Voltage (Max) | 10.3 V |
| Peak Output Current | 200 A |
| Reverse Leakage Current | 200 µA |
| Operating Temperature Range | -55°C to +175°C |
| Storage Temperature Range | -65°C to +175°C |
| Capacitance | 5200 pF |

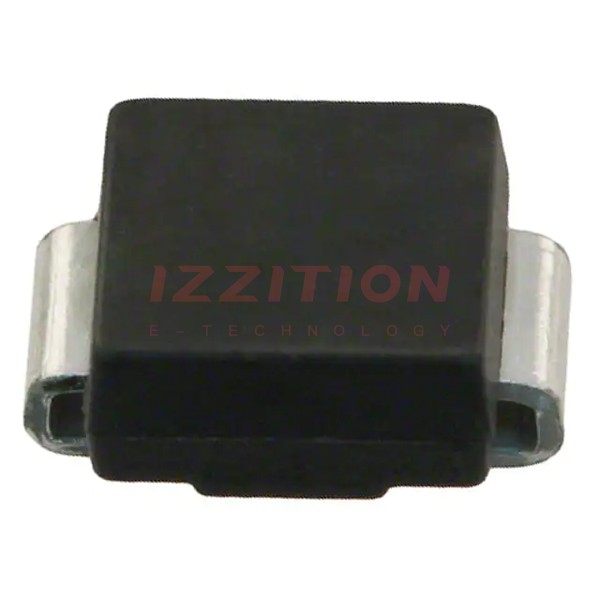

| Package Style | SMB (DO-214AA) |
| Mounting Method | Surface Mount |
Key Features
- Peak pulse power of 600 W (10/1000 μs)
- Stand-off voltage of 3.3 V
- Unidirectional type
- Low clamping factor
- Fast response time
- JEDEC registered package outline
Applications
- Industrial applications
- Automotive applications
Q & A
- What is the SMLVT3V3 used for? The SMLVT3V3 is used to protect sensitive 3.3 V equipment against transient overvoltages.
- What is the peak pulse power of the SMLVT3V3? The peak pulse power is 600 W (10/1000 μs).
- What is the stand-off voltage of the SMLVT3V3? The stand-off voltage is 3.3 V.
- Is the SMLVT3V3 unidirectional or bidirectional? The SMLVT3V3 is unidirectional.
- What is the operating temperature range of the SMLVT3V3? The operating temperature range is -55°C to +175°C.
- What is the package style of the SMLVT3V3? The package style is SMB (DO-214AA).
- How is the SMLVT3V3 mounted? The SMLVT3V3 is surface mounted.
- What are the typical applications of the SMLVT3V3? Typical applications include industrial and automotive sectors.
- What is the clamping voltage of the SMLVT3V3? The clamping voltage is up to 10.3 V.
- What is the reverse leakage current of the SMLVT3V3? The reverse leakage current is 200 µA.
