Overview

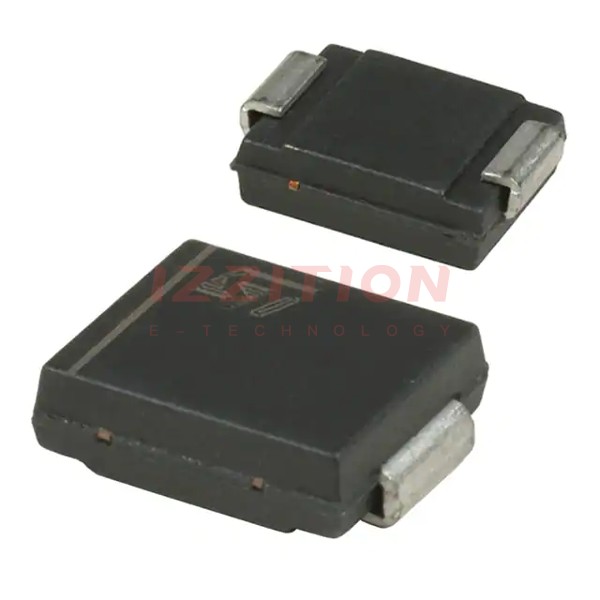

The SM30T39AY is a high-performance Transient Voltage Suppressor (TVS) designed by STMicroelectronics for automotive applications. This component is part of the SM30TY series, which is engineered to protect sensitive automotive circuits against surges and electrostatic discharges as defined in ISO 7637-2 and ISO 10605, respectively. The SM30T39AY features planar technology, ensuring low leakage current and high junction temperature tolerance, which are crucial for long-term reliability and stability in high-end circuits.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Peak Pulse Power (10/1000 μs) | 3000 | W |
| Peak Pulse Power (8/20 μs) | Up to 40 kW | kW |
| Stand-off Voltage | 33 V | V |
| Operating Junction Temperature Range | -55 to +175 | °C |
| Storage Temperature Range | -65 to +175 | °C |
| Maximum Lead Temperature for Soldering | 260 | °C |
| Leakage Current at 25 °C | 0.2 µA | µA |
| Compliance Standards | UL94 V0, J-STD-020 MSL level 1, J-STD-002, JESD 22-B102 E3, MIL-STD-750 method 2026, JESD-201 class 2 whisker test | |
| Electrostatic Discharge (ESD) Protection | Up to 30 kV (air and contact discharge) | kV |
Key Features
- AEC-Q101 Qualified: Ensures the component meets stringent automotive standards.
- High Peak Pulse Power: Capable of handling up to 3000 W (10/1000 μs) and up to 40 kW (8/20 μs).
- Low Leakage Current: Only 0.2 µA at 25 °C, minimizing power consumption.
- High Operating Junction Temperature: Can operate up to 175 °C, ensuring reliability in harsh environments.
- Compliance with Multiple Standards: Meets UL94 V0, J-STD-020, J-STD-002, and other relevant standards.
- Robust ESD Protection: Provides protection up to 30 kV for both air and contact discharges.
- Planar Technology: Enhances long-term reliability and stability in high-end circuits.
Applications
The SM30T39AY is designed for use in automotive systems, particularly in applications where protection against surges and electrostatic discharges is critical. This includes:
- Automotive electronics such as infotainment systems, navigation, and driver assistance systems.
- Power supplies and battery management systems.
- Safety-critical systems like airbag controllers and anti-lock braking systems (ABS).
- Other high-reliability automotive circuits requiring robust surge and ESD protection.
