Overview

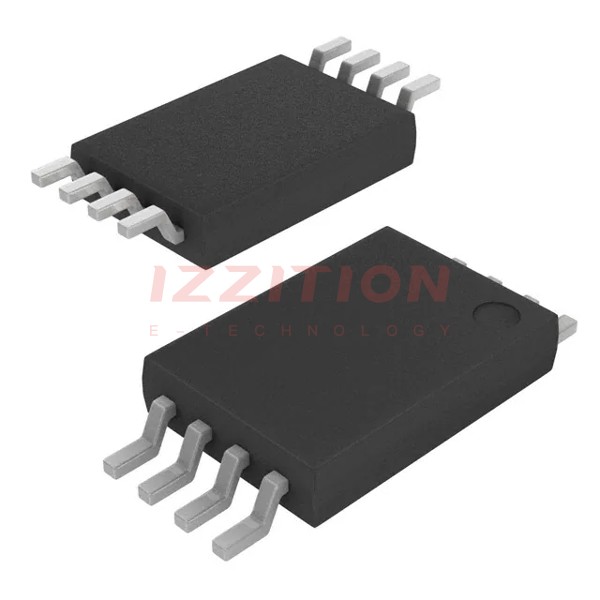

The M95320-RDW6TP is a high-performance Serial EEPROM designed by STMicroelectronics. This integrated circuit is part of the M95 series and is tailored for a wide range of applications in embedded systems. It offers reliable memory storage solutions with high-density storage capabilities, low power consumption, and a compact size. The device is preferred for its ease of integration and performance efficiency in various sectors such as automotive, industrial, and consumer electronics.
The M95320-RDW6TP leverages advanced non-volatile memory technology, allowing it to retain stored information even when powered off. With a capacity of 32 Kbit (organized as 4096 x 8 bits), it provides ample space for data storage, making it ideal for tasks such as parameter storage, configuration settings, and other critical data retention needs.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Part Number | M95320-RDW6TP |
| Memory Type | Serial EEPROM |
| Memory Size | 32 Kbit (4096 x 8 bits) |
| Interface | Standard SPI (Serial Peripheral Interface) compliant |
| Operating Voltage | 2.5 V to 5.5 V |
| Data Retention | More than 200 years |
| Endurance | More than 4 million write cycles |
| Access Time | 100 ns (maximum) |
| Package Type | TSSOP-8 |
| Temperature Range | -40°C to +85°C |
| High-Speed Clock | Up to 20 MHz |
Key Features
- Compatible with the Serial Peripheral Interface (SPI) bus
- Memory array of 32 Kbit (4096 x 8 bits) with a page size of 32 bytes
- Write operations: Byte Write and Page Write within 5 ms
- Additional Write lockable page (Identification page) for storing sensitive application parameters
- Write Protect: quarter, half or whole memory array
- Enhanced ESD protection
- Compact TSSOP-8 package
- Operating temperature range from -40°C to +85°C
Applications
- Automotive applications: parameter storage for controllers
- Industrial control systems: data logging and configuration
- Consumer electronics: user preference settings
- Medical devices: patient data storage
- Smart appliances: configuration and settings storage
- Telecommunication devices: firmware storage
Q & A
- What is the maximum clock frequency supported by the M95320-RDW6TP?
The maximum clock frequency it supports is 20 MHz.
- Can the M95320-RDW6TP be used in a 3.3V system?
- How many write cycles does the M95320-RDW6TP support?
- Is the data stored in M95320-RDW6TP secure during power loss?
- What are the typical applications for this EEPROM?
- What is the operating temperature range of the M95320-RDW6TP?
- What is the package type of the M95320-RDW6TP?
- Does the M95320-RDW6TP have any additional memory pages for special purposes?
- How does the M95320-RDW6TP protect against data corruption?
- What is the access time of the M95320-RDW6TP?
