Overview
The M24256-DRMF3TG/K is a 256-Kbit serial EEPROM device manufactured by STMicroelectronics, designed for automotive applications. This device operates up to 125 °C and is compliant with the high reliability standards defined by the Automotive standard AEC-Q100 grade 1. It features a simple serial I²C compatible interface that can run up to 1 MHz. The memory array is based on advanced true EEPROM technology, organized as 512 pages of 64 bytes each, with an embedded Error Correction Code logic to enhance data integrity. Additionally, it includes an Identification Page for storing device identification and sensitive application parameters, which can be permanently locked in read-only mode.
Key Specifications
| Specification | Value |
|---|---|
| Memory Size | 256 Kbit (32 Kbyte) |
| Memory Type | EEPROM |
| Operating Temperature Range | -40 °C to 125 °C |
| Supply Voltage Range | 1.7 V to 5.5 V |
| I²C Bus Speed | Up to 1 MHz |
| Page Size | 64 bytes |
| Write Cycle Time | Byte Write: 4 ms, Page Write: 4 ms |
| Write Cycle Endurance | 4 million cycles at 25 °C, 1.2 million cycles at 85 °C, 600 k cycles at 125 °C |
| Data Retention | 50 years at 125 °C, 100 years at 25 °C |
| ESD Protection | 4000 V (Human Body Model) |

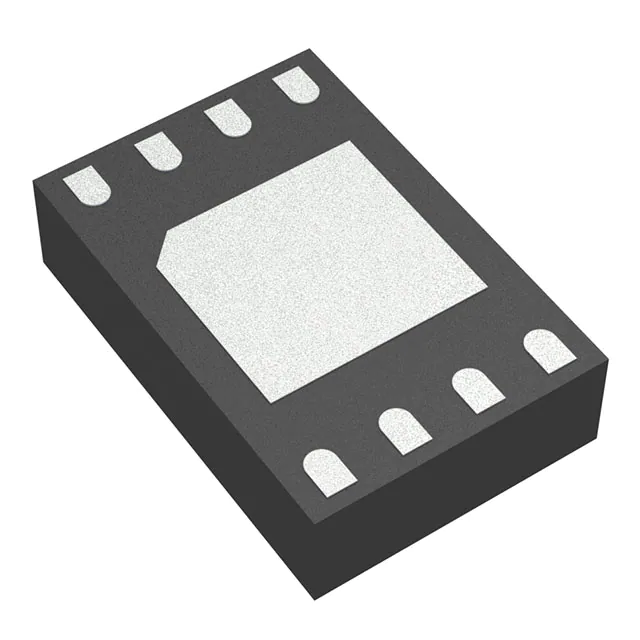

| Packages | TSSOP-8L, SO8, DFN8 (all RoHS compliant and halogen-free) |
Key Features
- Compatible with all I²C bus modes (1 MHz, 400 kHz, 100 kHz)
- Extended temperature and voltage ranges (-40 °C to 125 °C; 1.7 V to 5.5 V)
- Schmitt trigger inputs for noise filtering
- Short Write cycle time (Byte Write within 4 ms, Page Write within 4 ms)
- High write cycle endurance (4 million cycles at 25 °C, 1.2 million cycles at 85 °C, 600 k cycles at 125 °C)
- Long data retention (50 years at 125 °C, 100 years at 25 °C)
- ESD protection (4000 V, Human Body Model)
- Additional Write lockable Identification Page (64 bytes)
- RoHS compliant and halogen-free packages (ECOPACK²)
Applications
The M24256-DRMF3TG/K is designed for use in automotive and industrial applications where high reliability and durability are critical. It is suitable for various uses such as:
- Automotive systems (e.g., infotainment, navigation, and control systems)
- Industrial control systems
- Medical devices requiring high reliability
- Aerospace and defense applications
- Any application requiring non-volatile memory with high endurance and data integrity
Q & A
- What is the maximum operating temperature of the M24256-DRMF3TG/K?
The maximum operating temperature is 125 °C.
- What is the minimum supply voltage for the M24256-DRMF3TG/K?
The minimum supply voltage is 1.7 V.
- What is the I²C bus speed of the M24256-DRMF3TG/K?
The I²C bus speed can run up to 1 MHz.
- How many write cycles can the M24256-DRMF3TG/K endure at 25 °C?
The device can endure 4 million write cycles at 25 °C.
- What is the data retention period of the M24256-DRMF3TG/K at 125 °C?
The data retention period is 50 years at 125 °C.
- Does the M24256-DRMF3TG/K have ESD protection?
- What types of packages are available for the M24256-DRMF3TG/K?
The device is available in TSSOP-8L, SO8, and DFN8 packages, all of which are RoHS compliant and halogen-free.
- Is the M24256-DRMF3TG/K compliant with automotive reliability standards?
- What is the purpose of the Identification Page in the M24256-DRMF3TG/K?
The Identification Page can be used to store device identification and sensitive application parameters, which can be permanently locked in read-only mode.
- Does the M24256-DRMF3TG/K have noise filtering capabilities?
