Overview

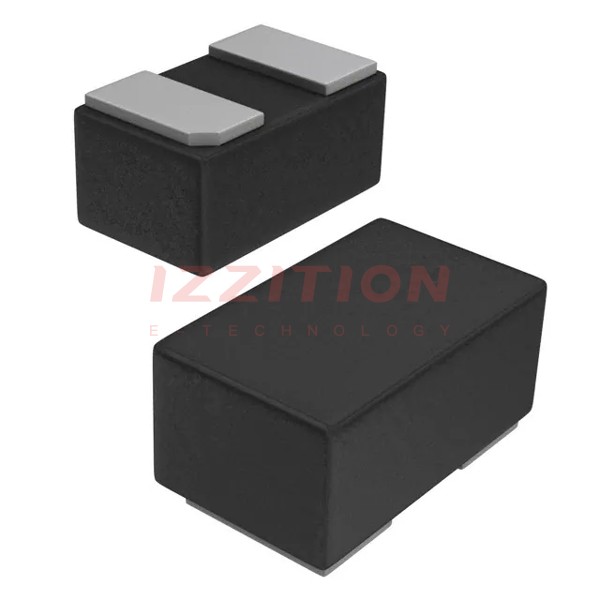

The ESDALC12-1T2 is a unidirectional single line Transil™ diode designed by STMicroelectronics for the protection of integrated circuits in portable equipment and miniaturized electronic devices. This component is part of the TVS (Transient Voltage Suppressor) family and is specifically engineered to provide robust ESD (Electrostatic Discharge) and surge protection.
Key Specifications
| Parameter | Value |
|---|---|
| Package Type | SOD-882T |
| Peak Pulse Current (Ipp) | 2A (8/20µs) |
| Clamping Voltage | 20V |
| Breakdown Voltage | 12V |
| Power Dissipation | 50W |
| Compliance | ROHS |
Key Features
- Unidirectional protection for single data or power lines.
- High surge current capability: 2A (8/20µs).
- Low clamping voltage: 20V.
- Compact SOD-882T package.
- ROHS compliant.
Applications
The ESDALC12-1T2 is suitable for a variety of applications, including:
- Portable electronic devices such as smartphones, tablets, and laptops.
- Miniaturized electronic equipment.
- Data and power lines in consumer electronics.
- Automotive and industrial control systems requiring ESD protection.
Q & A
- What is the primary function of the ESDALC12-1T2? The primary function is to provide ESD and surge protection for integrated circuits in electronic devices.
- What is the peak pulse current rating of the ESDALC12-1T2? The peak pulse current rating is 2A (8/20µs).
- What is the clamping voltage of the ESDALC12-1T2? The clamping voltage is 20V.
- What package type does the ESDALC12-1T2 use? The ESDALC12-1T2 uses the SOD-882T package.
- Is the ESDALC12-1T2 ROHS compliant? Yes, the ESDALC12-1T2 is ROHS compliant.
- What are some common applications for the ESDALC12-1T2? Common applications include portable electronic devices, miniaturized electronic equipment, and data/power lines in consumer electronics.
- What is the power dissipation capability of the ESDALC12-1T2? The power dissipation capability is 50W.
- Is the ESDALC12-1T2 suitable for automotive applications? Yes, it is suitable for automotive and industrial control systems requiring ESD protection.
- What is the breakdown voltage of the ESDALC12-1T2? The breakdown voltage is 12V.
- Where can I find detailed specifications for the ESDALC12-1T2? Detailed specifications can be found in the datasheet available on STMicroelectronics' official website and other electronic component suppliers like Digi-Key and LCSC.
