Overview
The ESDA6V1-5W6 is a monolithic suppressor designed by STMicroelectronics to protect components connected to data and transmission lines against Electrostatic Discharge (ESD). This device is part of the ESDAxxxWx series, which is known for its high ESD protection levels and compact design. The ESDA6V1-5W6 specifically clamps voltage just above the logic level supply for positive transients and to a diode drop below ground for negative transients, ensuring robust protection for sensitive electronic components.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Breakdown Voltage (VBR) | 6.1 - 7.2 | V |
| Leakage Current (IRM) | < 1 | µA |
| Clamping Voltage (VCL) | 3 | V |
| Peak Pulse Current (IPP) | 15 | A |
| Peak Pulse Power (PPP) | 100 | W |
| Junction Temperature (Tj) | -40 to +125 | °C |
| Storage Temperature Range (Tstg) | -55 to +150 | °C |
| Maximum Lead Temperature for Soldering | 260 | °C |
| Capacitance | 50 | pF |

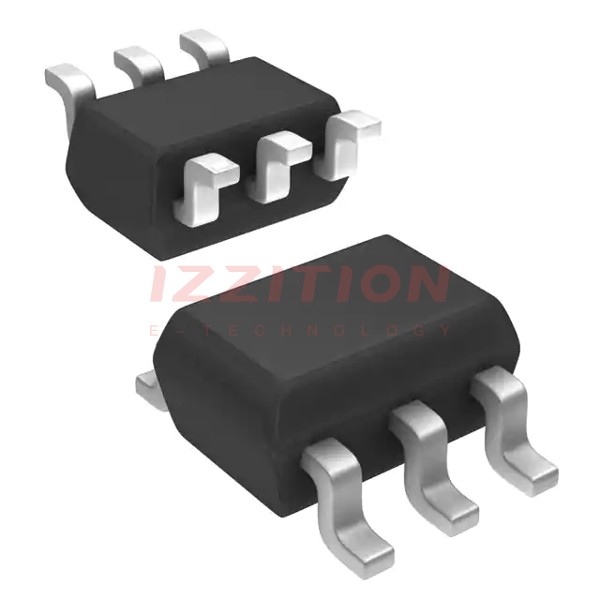

| Package Type | SOT323-6L |
Key Features
- High ESD protection level: up to 25 kV (Human Body Model)
- Low leakage current: < 1 µA
- Very small PCB area: typically < 4.2 mm^2
- Compliance with IEC61000-4-2 and MIL STD 883E - Method 3015-7 Class 3 standards
- Unidirectional Transil functions: protects up to 5 lines
- Compact SOT323-6L package
Applications
- Computers and peripherals
- Printers
- Communication systems
- Cellular phones and accessories
- Wireline and wireless telephone sets
- Set top boxes
- Automotive systems (e.g., on-board computer systems)
- Telecommunications networks (e.g., DSL and SIM cards)
- Industrial control systems, robotic systems, and instrumentation
Q & A
- What is the primary function of the ESDA6V1-5W6? The primary function is to protect components connected to data and transmission lines against Electrostatic Discharge (ESD).
- What is the breakdown voltage (VBR) of the ESDA6V1-5W6? The breakdown voltage is between 6.1 V and 7.2 V.
- What is the maximum leakage current (IRM) of the ESDA6V1-5W6? The maximum leakage current is less than 1 µA.
- What is the clamping voltage (VCL) of the ESDA6V1-5W6? The clamping voltage is 3 V.
- What is the peak pulse current (IPP) of the ESDA6V1-5W6? The peak pulse current is 15 A.
- What is the operating temperature range of the ESDA6V1-5W6? The operating temperature range is -40°C to +125°C.
- What standards does the ESDA6V1-5W6 comply with? It complies with IEC61000-4-2 and MIL STD 883E - Method 3015-7 Class 3 standards.
- How many lines can the ESDA6V1-5W6 protect? It can protect up to 5 lines.
- What is the package type of the ESDA6V1-5W6? The package type is SOT323-6L.
- What are some common applications of the ESDA6V1-5W6? Common applications include computers, printers, communication systems, cellular phones, automotive systems, and telecommunications networks.
