Overview

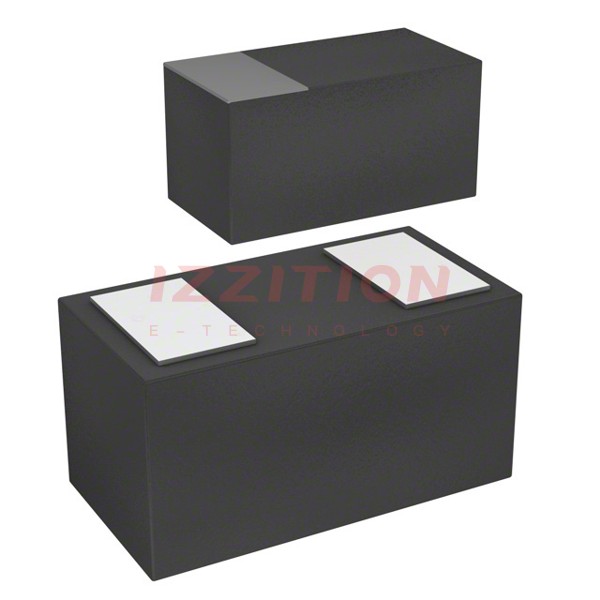

The ESD051-1F4 is a unidirectional single line TVS (Transient Voltage Suppressor) diode designed by STMicroelectronics to protect power lines against EOS (Electrical Overstress) and ESD (Electrostatic Discharge) transients. This component is particularly suited for applications where space-saving is crucial, such as in cellular handsets, wearable devices, USB buses, and battery lines. The ESD051-1F4 is packaged in the ST0201 package, which is environmentally compliant and available in various ECOPACK grades.
Key Specifications
| Parameter | Test Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| Peak Pulse Voltage (IEC 61000-4-2) | Contact Discharge | - | - | ±30 | kV |
| Air Discharge | - | - | ±30 | kV | |
| Peak Pulse Power (8/20 μs) | - | - | - | 110 | W |
| Peak Pulse Current (8/20 μs) | - | - | - | 11 | A |
| Operating Junction Temperature Range | - | -55 | - | 150 | °C |
| Storage Junction Temperature Range | - | -65 | - | 150 | °C |
| Reverse Working Voltage (VRM) | - | - | 5.5 | - | V |
| Breakdown Voltage (VBR) at IR = 1 mA | - | - | 5.8 | - | V |
| Leakage Current at VRM (IRM) | VRM = 5.5 V | - | - | 100 nA | - |
| Clamping Voltage (VCL) | IEC 61000-4-2, +8 kV contact | - | - | 9.0 | V |
| IEC 61000-4-2, -8 kV contact | - | - | -3.0 | V |
Key Features
- Low clamping voltage: -3 V / +9 V (IEC 61000-4-2 contact discharge at 30 ns)
- Unidirectional diode
- Low leakage current
- Complies with IEC 61000-4-2 level 4 standards (exceeds level 4): ±30 kV (air and contact discharge)
- ST0201 package for space-saving designs
- Environmentally compliant ECOPACK packaging
Applications
The ESD051-1F4 is ideal for protecting ESD-sensitive equipment in various applications, including:
- Smartphones, mobile phones, and accessories
- Tablets, PCs, netbooks, and notebooks
- Portable multimedia devices and accessories
- Digital cameras and camcorders
- Communication and highly integrated systems
Q & A
- What is the ESD051-1F4 used for?
The ESD051-1F4 is used to protect power lines against EOS and ESD transients in electronic devices. - What is the clamping voltage of the ESD051-1F4?
The clamping voltage is -3 V / +9 V (IEC 61000-4-2 contact discharge at 30 ns). - What package type is the ESD051-1F4 available in?
The ESD051-1F4 is available in the ST0201 package. - What are the key standards the ESD051-1F4 complies with?
The ESD051-1F4 complies with IEC 61000-4-2 level 4 standards (exceeds level 4): ±30 kV (air and contact discharge). - What is the typical breakdown voltage of the ESD051-1F4?
The typical breakdown voltage (VBR) at IR = 1 mA is 5.8 V. - What is the maximum leakage current at VRM?
The maximum leakage current (IRM) at VRM = 5.5 V is 100 nA. - What are some common applications of the ESD051-1F4?
Common applications include smartphones, tablets, PCs, portable multimedia devices, digital cameras, and communication systems. - What is the operating junction temperature range of the ESD051-1F4?
The operating junction temperature range is -55 to 150 °C. - What is the storage junction temperature range of the ESD051-1F4?
The storage junction temperature range is -65 to 150 °C. - Is the ESD051-1F4 environmentally compliant?
Yes, the ESD051-1F4 is available in environmentally compliant ECOPACK packaging.
