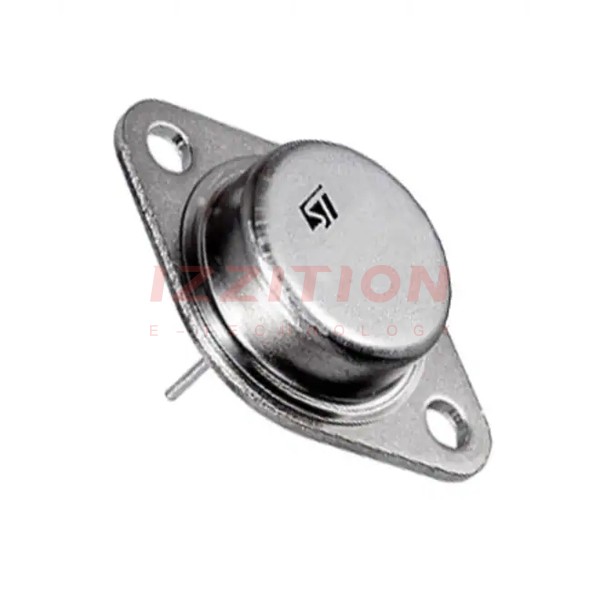

STMicroelectronics BU208A

Manufacturer No:
BU208A
Manufacturer:
STMicroelectronics
Package:
Bulk
Description:
TRANS NPN 700V 8A TO3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BU208A is a high-voltage, fast-switching NPN power transistor manufactured by STMicroelectronics. This transistor is designed using Multiepitaxial Mesa technology, which enhances its performance and cost-effectiveness. It features a Hollow Emitter structure to improve switching speeds, making it suitable for various high-power applications. The BU208A is packaged in a TO-3 chassis mount configuration, which is fully insulated and compliant with UL standards, facilitating easy mounting in different applications.

Key Specifications

ParameterValueUnit
Collector-Emitter Voltage (VCE)700V
Collector-Emitter Voltage (VCE) with VBE = 01500V
Emitter-Base Voltage (VEB)10V
Collector Current (IC)8A
Collector Peak Current (ICM)15A
Total Dissipation at Tc = 25°C150W
Insulation Withstand Voltage2500V (RMS)
Storage Temperature-65 to 175°C
Max. Operating Junction Temperature175°C
Transition Frequency7MHz

Key Features

  • High voltage capability: Up to 1500 V collector-emitter voltage and 700 V collector-emitter voltage with zero base current.
  • Fast-switching performance: Enhanced by the Hollow Emitter structure and Multiepitaxial Mesa technology.
  • High current handling: Maximum collector current of 8 A and peak current of 15 A.
  • Fully insulated package: Compliant with UL standards, facilitating easy mounting and ensuring safety in high-voltage applications.
  • High power dissipation: Total dissipation of up to 150 W at Tc = 25°C.

Applications

  • Horizontal deflection in color TV sets.
  • High-power switching applications requiring fast switching times and high voltage handling.
  • Industrial power supplies and motor control systems.

Q & A

  1. What is the maximum collector-emitter voltage of the BU208A transistor? The maximum collector-emitter voltage (VCE) is 700 V, and up to 1500 V with VBE = 0.
  2. What is the maximum collector current of the BU208A? The maximum collector current (IC) is 8 A, with a peak current (ICM) of 15 A.
  3. What is the transition frequency of the BU208A transistor? The transition frequency is 7 MHz.
  4. What is the package type of the BU208A transistor? The BU208A is packaged in a TO-3 chassis mount configuration.
  5. Is the BU208A transistor fully insulated? Yes, the BU208A has a fully insulated package, compliant with UL standards.
  6. What are the typical applications of the BU208A transistor? Typical applications include horizontal deflection in color TV sets and high-power switching applications.
  7. What is the maximum operating junction temperature of the BU208A? The maximum operating junction temperature is 175°C.
  8. Is the BU208A transistor still in production? No, the BU208A is an obsolete product and is no longer manufactured.
  9. What is the total power dissipation of the BU208A at Tc = 25°C? The total power dissipation is up to 150 W.
  10. What technology is used in the manufacture of the BU208A transistor? The BU208A is manufactured using Multiepitaxial Mesa technology.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):8 A
Voltage - Collector Emitter Breakdown (Max):700 V
Vce Saturation (Max) @ Ib, Ic:1V @ 2A, 4.5A
Current - Collector Cutoff (Max):1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:-
Power - Max:150 W
Frequency - Transition:7MHz
Operating Temperature:175°C (TJ)
Mounting Type:Chassis Mount
Package / Case:TO-204AA, TO-3
Supplier Device Package:TO-3
0 Remaining View Similar

In Stock

-
41

Please send RFQ , we will respond immediately.

Same Series
BU508A
BU508A
TRANS NPN 700V 8A TO247-3
BU508AFI
BU508AFI
TRANS NPN 700V 8A ISOWATT-218FX

Similar Products

Part Number BU208A BU508A
Manufacturer STMicroelectronics Motorola
Product Status Obsolete Obsolete
Transistor Type NPN NPN
Current - Collector (Ic) (Max) 8 A 8 A
Voltage - Collector Emitter Breakdown (Max) 700 V 700 V
Vce Saturation (Max) @ Ib, Ic 1V @ 2A, 4.5A 1V @ 2A, 4.5A
Current - Collector Cutoff (Max) 1mA 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce - -
Power - Max 150 W 125 W
Frequency - Transition 7MHz 7MHz
Operating Temperature 175°C (TJ) 150°C (TJ)
Mounting Type Chassis Mount Through Hole
Package / Case TO-204AA, TO-3 TO-247-3
Supplier Device Package TO-3 TO-247-3
